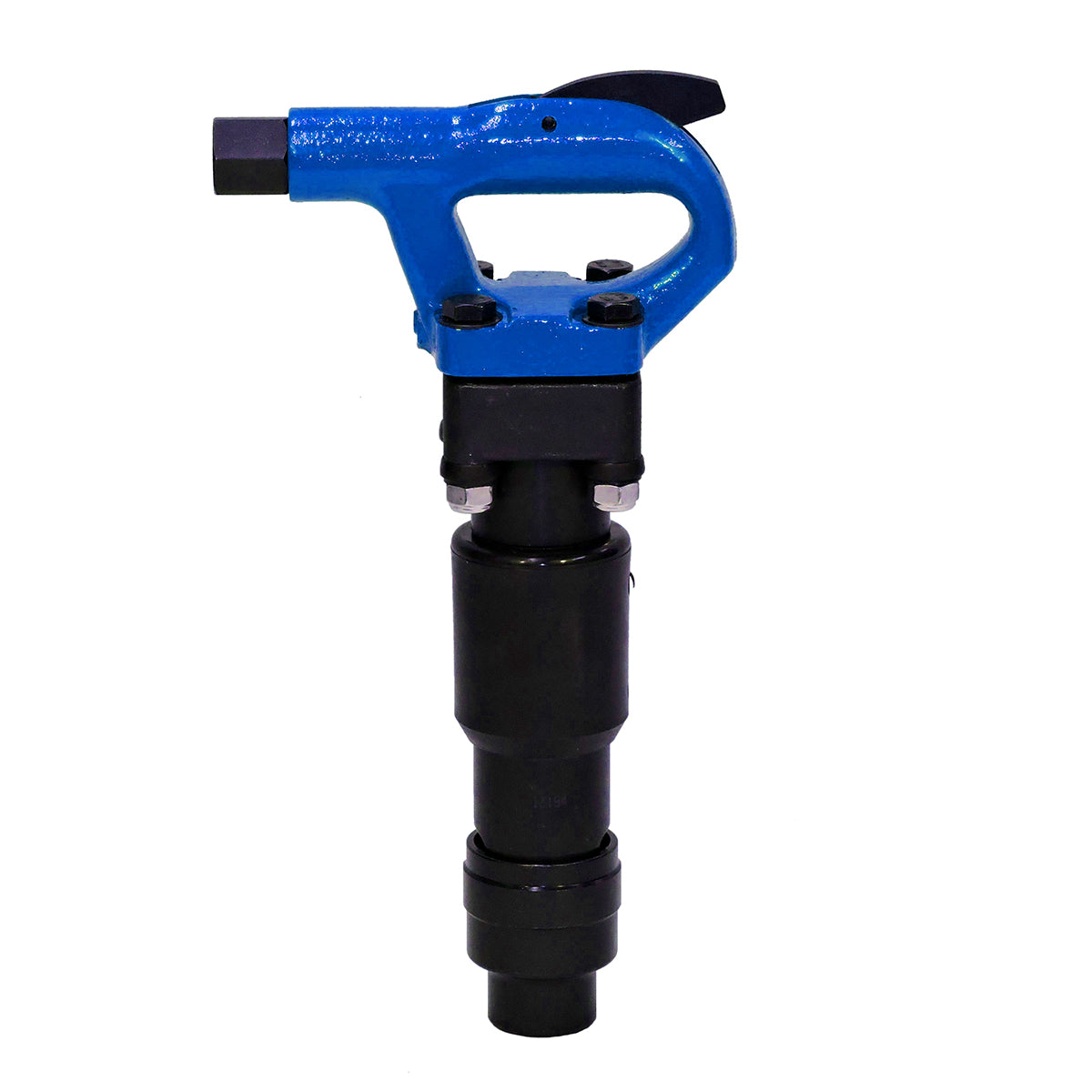

KTC-T2, T3, T4 CHIPPING HAMMER TOP TRIGGER

Regular price



FEATURES

  • Top Trigger 4 Bolt Chipping Hammer.
  • Choose different weight classes: T2, T3, or T4.

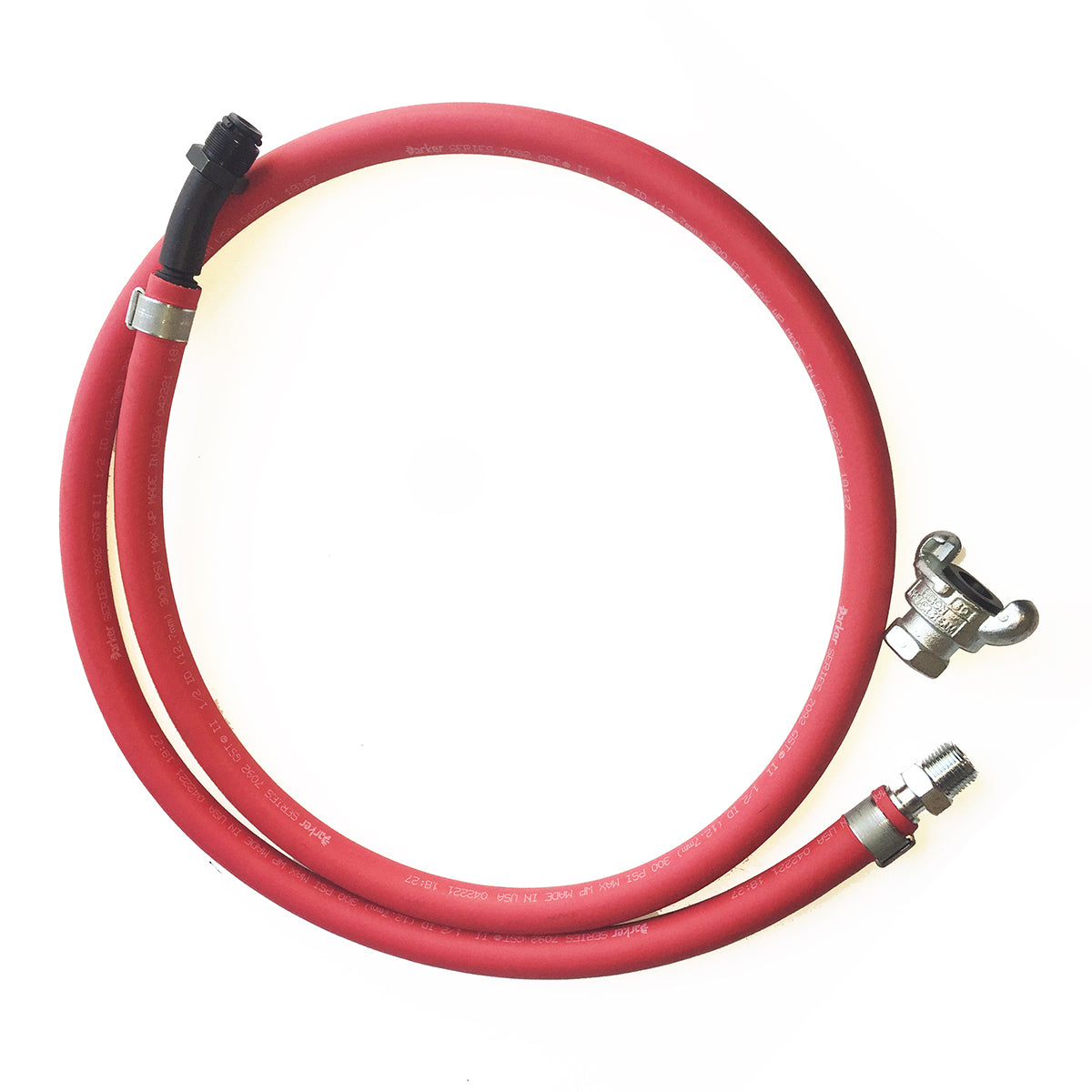

  • Includes Whip Hose

SCHEMATIC & PARTS LIST

Schematic: Click Here

Escquemático : En español haz clic aquí


SPECIFICATIONS



Item Model Number

KTC-T2 CHIPPING HAMMER TOP TRIGGER

Blows Per Minute 2300 B.P.M.
Bore 1.125 inch (29 mm)
Stroke 2 inch (51 mm)
Net Weight 13 lbs (6 kg)
Chuck Sizes

0.58 inch (14.8 mm) Hex

0.68 inch (17.5 mm) Round

Air Inlet (NPT) 3/8 inch (10 mm)
Air Consumption
29.75 cfm (0.84 m3/m)
Length 14 Inch (365 mm)

*Use ISO 32 Tool Oil (10w Tool Oil)


Item Model Number KTC-T3 CHIPPING HAMMER

TOP TRIGGER
Blows Per Minute 2200 B.P.M.
Bore 1.125 inch (29 mm)
Stroke 3 inch (75 mm)
Net Weight 14 lbs (6.4 kg)
Chuck Sizes

0.58 inch (14.8 mm) Hex

0.68 inch (17.5 mm) Round

Air Inlet (NPT) 3/8 inch (10 mm)
Air Consumption
31.5 cfm (0.89 m3/m)
Length 15.3 Inch (387 mm)




Item Model Number KTC-T4 CHIPPING HAMMER

TOP TRIGGER
Blows Per Minute 1800 B.P.M.
Bore 4 inch (102 mm)
Stroke 2 inch (51 mm)
Net Weight 15 lbs (7 kg)
Chuck Sizes

0.58 inch (14.8 mm) Hex

0.68 inch (17.5 mm) Round

Air Inlet (NPT) 3/8 inch (10 mm)
Air Consumption
33.23 cfm (0.94 m3/m)
Length 17 Inch (432 mm)
