FEATURES

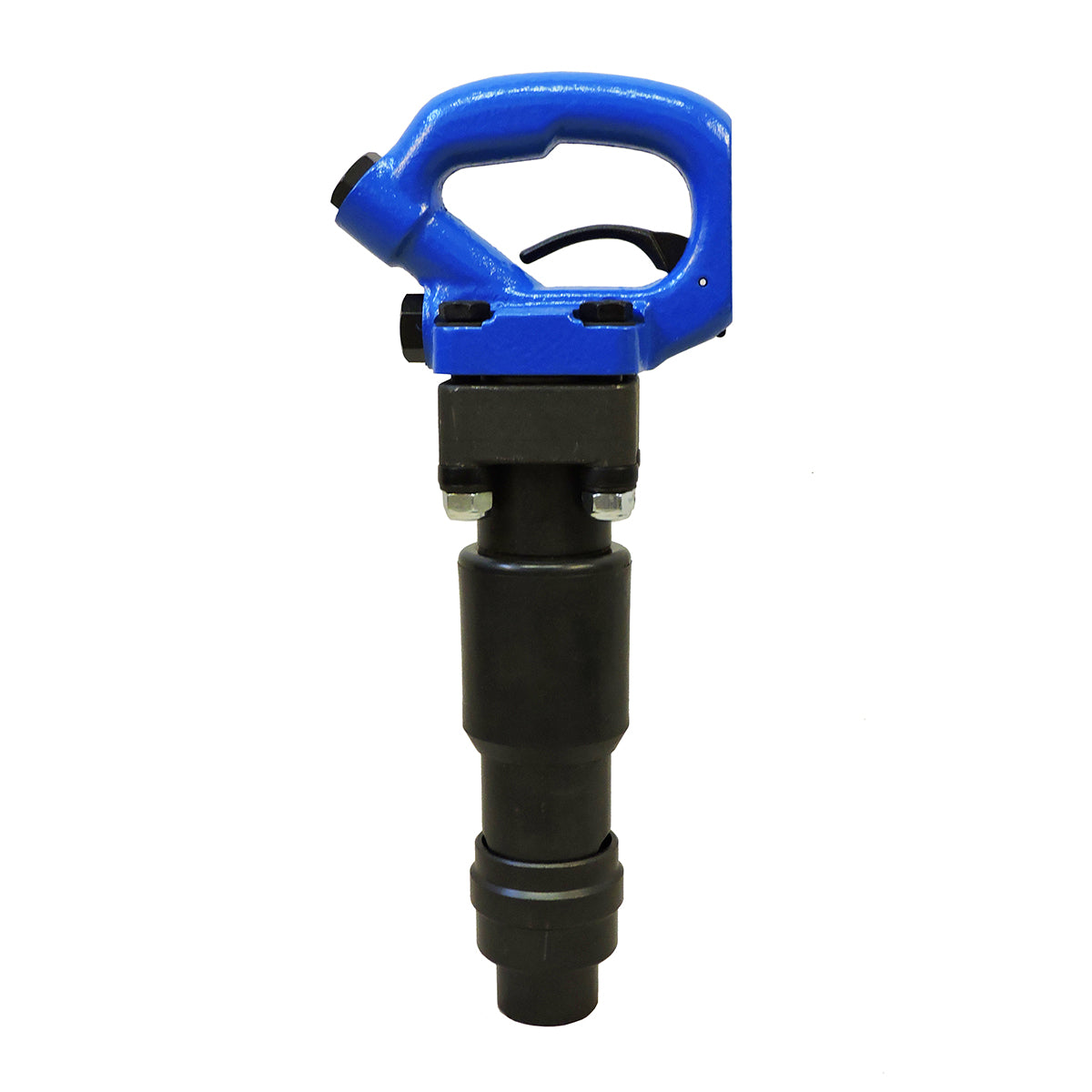

- This chipping hammer has an inside trigger and 4 bolt sx handle.
- Used for chipping concrete in parking garages, light demolition, and building restoration.
- Rotating exhaust deflector.
SCHEMATIC & PARTS LIST
KTC-2, 3, 4 Schematic: Click Here
KTC-2, 3, 4 Escquemático:En español haz clic aqui
SPECIFICATIONS
| Item Model Number | KTC-2 |
| Blows Per Minute | 2300 B.P.M. |
| Bore | 2 inch (29 mm) |
| Stroke | 2 inch (51 mm) |
| Net Weight | 13 lbs (6 kg) |
| Chuck Sizes |
0.58 inch (14.8 mm) Hex 0.68 inch (17.5 mm) Round |
| Air Inlet (NPT) | 3/8 inch (10 mm) |
| Air Consumption |
29.75 cfm (0.84 m3/m)
|
| Length | 14 inch (365 mm) |
| Item Model Number | KTC-3 |
| Blows Per Minute | 2200 B.P.M. |
| Bore | 1.125 inch (29 mm) |
| Stroke | 3 inch (75 mm) |
| Net Weight | 14 lbs (6.4 kg) |
| Chuck Sizes |
0.58 inch (14.8 mm) Hex 0.68 inch (17.5 mm) Round |
| Air Inlet (NPT) | 3/8 inch (10 mm) |
| Air Consumption |
31.5 cfm (0.89 m3/m)
|
| Length | 15.25 inch (387 mm) |
| Item Model Number | KTC-4 |
| Blows Per Minute | 1800 B.P.M. |
| Bore | 1.125 inch (29 mm) |
| Stroke | 4 inch (102 mm) |
| Net Weight | 15 lbs (7 kg) |
| Chuck Sizes |
0.58 inch (14.8 mm) Hex 0.68 inch (17.5 mm) Round |
| Air Inlet (NPT) | 3/8 inch (10 mm) |
| Air Consumption |
33.23 cfm (0.94 m3/m)
|
| Length | 17 inch (432 mm) |
TOOL CONDITION
In very good condition, never been used.
*Color of the handle may vary from photo.
