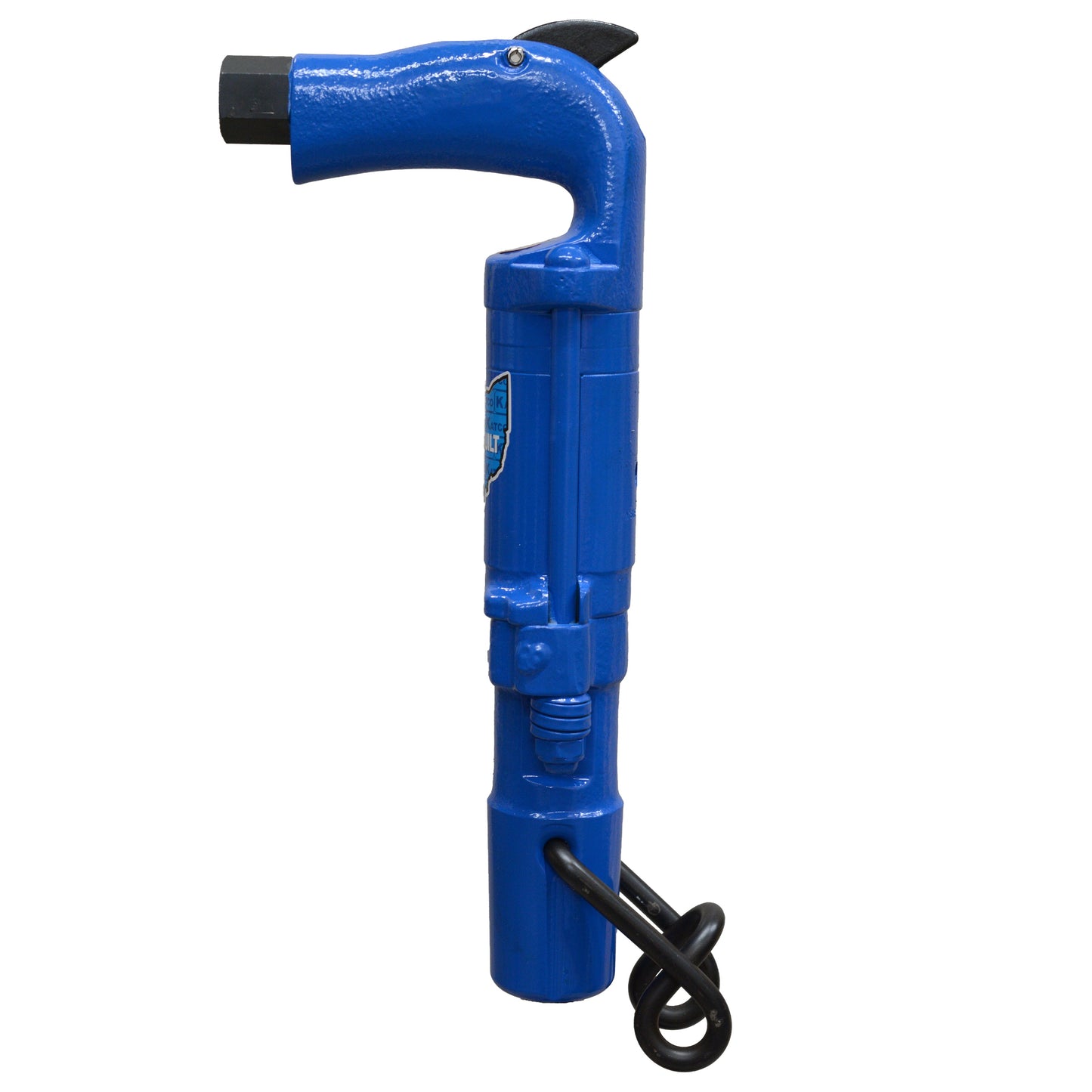

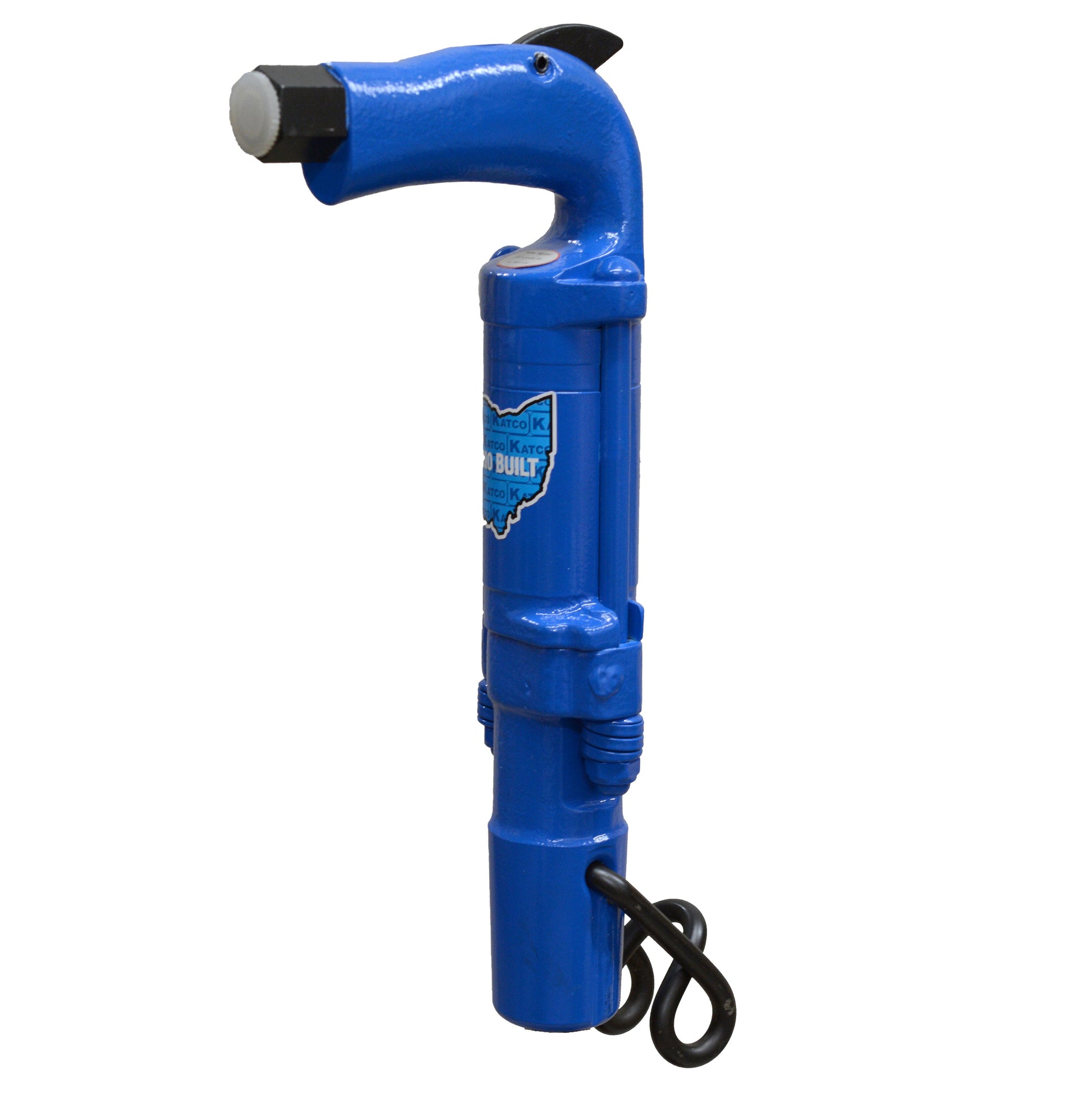

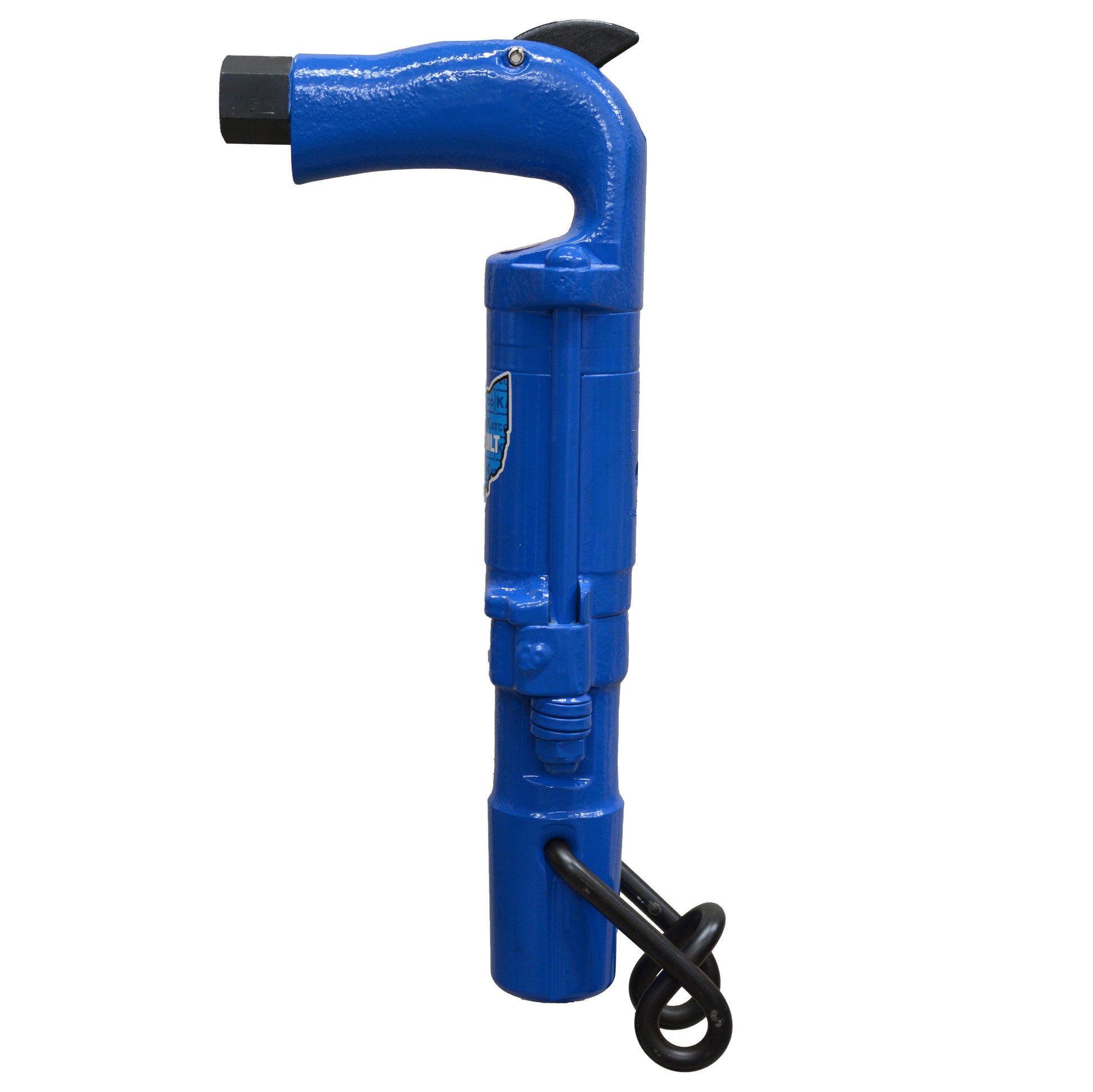

KT KT-RD12K Pneumatic Rock Drill Kit, 12 lb Class with 2 Carbide Bits
KT KT-RD12K Pneumatic Rock Drill Kit, 12 lb Class with 2 Carbide Bits
Couldn't load pickup availability
FEATURES
- 12 lb Class Rock Drill KIT
- KIT includes 2 Carbide speed bits: (1-5/8 wide x 9" long) & (1-7/8 wide x 9" long)
- Light-weight aluminum cast handle
- Rubber dust cover protest internal retainer parts
- Quick change ball-type retainer
SCHEMATIC
KT-RD12 Rock Drill Schematic: Click Here for PDF
SPECIFICATIONS
| Name | KT-RD12K Rock Drill Kit |
| Net Weight | 11.08 lbs (4 kg) |
| Length | 16.5 in (410 mm) |
| Bore | 1.125 in (28 mm) |
| Stroke | 2.375 in (60 mm) |
| Blows Per Minute | 2800 |
| Chuck Sizes | 3/4 x 2 in (19 x 50 mm) |
| Air Inlet (NPT) | 1/2 in NPT |
| Air Consumption* | 15.8 cfm (.45 m3/m) |
| *estimated | |
| Oil Tool | Use ISO Grade 100 Tool Oil in Breakers |
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
APPLICATION
Concrete Anchor & Dowel Hole Drilling
The KT-RD12K kit includes two carbide speed bits delivering 2,800 BPM to bore clean anchor and rebar dowel holes into solid concrete slabs and foundations. Its lightweight 11 lb design allows structural contractors to drill horizontally into concrete walls and overhead ceilings with minimal fatigue.
Masonry, Brick & Stone Fastening
Engineered for building renovation and structural masonry restoration, this compact air drill bores precise fastening holes into brick, mortar joints, and natural stone facades. The quick-change ball-type retainer lets crews switch between the included 1-5/8" and 1-7/8" carbide bits in seconds without stopping work.
Utility Trenching & Shallow Bedrock Drilling
Contractors rely on this pneumatic drill kit to bore blast holes and split stubborn boulders during plumbing line installations, utility trenching, and conduit runs. Its low 15.8 CFM air consumption allows standard portable compressors to run the drill easily on remote jobsites.
Confined-Space Mining & Tunnel Ground Support
Designed for tight subterranean headings, this compact drill installs rock bolts, utility hangers, and wire mesh in low-seam mines and crawlways. The built-in rubber dust cover shields internal retainer parts from abrasive rock grit, moisture, and dust during underground drilling.
FREQUENTLY ASKED QUESTIONS (FAQ)
What is included in the KT-RD12K Rock Drill Kit?
The kit includes the 11.08 lb pneumatic rock drill and two carbide speed bits: one 1-5/8" wide × 9" long bit and one 1-7/8" wide × 9" long bit.
What size air compressor is required to run the KT-RD12K?
The drill requires an air compressor delivering at least 15.8 CFM at 90 PSI through a standard 1/2-inch NPT air hose connection.
What chuck size and retainer mechanism does this drill use?
The drill features a 3/4" × 2" (19 × 50 mm) chuck with a quick-change ball-type retainer for fast, secure bit replacement on the jobsite.
How do I maintain and lubricate the KT-RD12K?
Add ISO Grade 100 tool oil into the 1/2-inch air inlet daily before each shift to protect internal seals and pistons. Always shut off and bleed air line pressure before swapping bits or servicing the tool.
