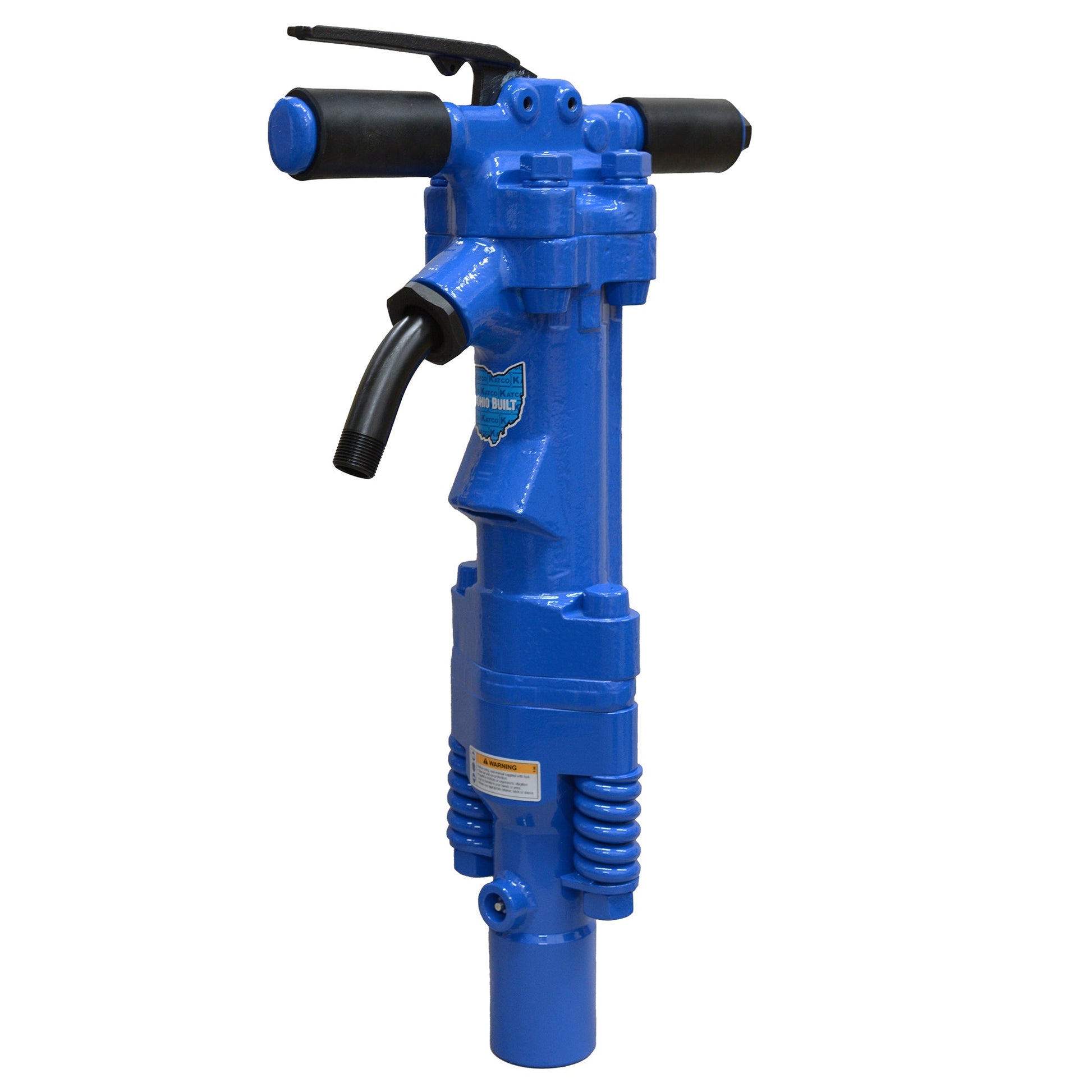

• A blue 60 lb class spike driver with a rubber handle grip and a black air inlet connection.

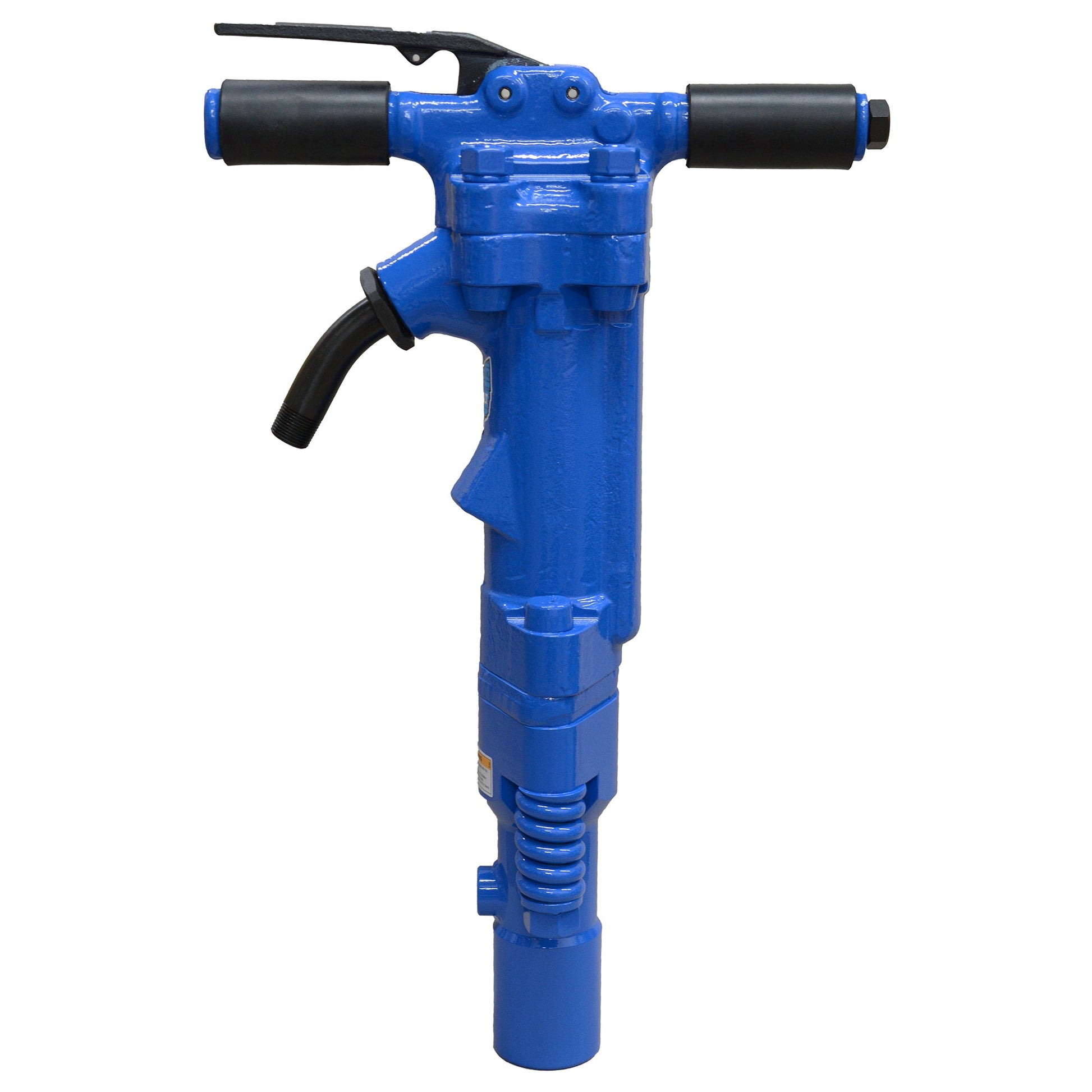

  • A blue spike driver with a rubber handle grip and a black air inlet connection.
1 2

Katco Tools

KT KT-SD60 Pneumatic Spike Driver

KT KT-SD60 Pneumatic Spike Driver

Sale Sold out

APPLICATIONS

Use in applications where a lighter-weight tool is desired, such as piers, trestles, underground mining, and tunnels.

FEATURES

  • Swivel air inlet connection
  • Internal oiler
  • Rubber handle grip with 4-bolt backhead construction
  • 60 lb Class Spike Driver

SCHEMATIC

KT-SD60 Schematic: Click Here


SPECIFICATIONS

Model Name KT-SD60 SPIKE DRIVER
Net Weight 64 lbs (29 kg)
Length 24.5 in (622 mm)
Bore  2.25 in (57 mm)
Stroke  4.0937 in (104 mm)
Blows Per Minute 1400
Air Inlet (NPT) 3/4 in (19 mm)
Air Consumption* 59 cfm (1.7 m3/m)
*estimated


*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.

WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.

Do NOT exceed 100 PSI (7BAR) working pressure.


APPLICATION

Railroad Track Maintenance & Switch Assembly

The KT-SD60 delivers high-speed 1,400 BPM driving power to seat steel spikes firmly into wooden ties during track repair, siding assembly, and yard maintenance. Its balanced 64 lb frame reduces operator fatigue while maintaining the heavy pneumatic force needed for industrial railway jobs.

Marine Piers, Docks & Waterfront Construction

Engineered for challenging coastal and marine environments, this air-powered driver quickly secures heavy timber deck boards, pier caps, and retaining bulkheads. The lighter-weight profile gives dock builders exceptional handling over open water without sacrificing downward fastener-driving impact.

Underground Mining & Tunnel Ground Support

Designed for confined subterranean spaces, this tool fastens narrow-gauge mine tracks, timber cribbing sets, and structural lagging in low-headroom headings. Its built-in internal oiler and rugged 4-bolt backhead ensure continuous, trouble-free operation in dusty underground shafts.

Wooden Trestles & Heavy Timber Framing

Ideal for elevated bridge trestles and heavy timber construction, the tool easily drives structural drift pins and large wood spikes through dense structural beams. The shock-absorbing rubber grip provides secure handling and reduced vibration for crews working on high scaffolding and retaining walls.


FREQUENTLY ASKED QUESTIONS (FAQ)

What size air compressor is required to operate the KT-SD60?

The tool requires an air compressor that delivers at least 59 CFM at 90 PSI through a standard 3/4-inch NPT air hose connection.

What is the recommended operating pressure (PSI)?

Operate the KT-SD60 at 90 PSI (6 bar) for optimal driving performance. Never exceed the 100 PSI (7 bar) limit to prevent premature component wear and safety hazards.

What are the key benefits of the swivel inlet and 4-bolt backhead?

The 360-degree swivel air inlet prevents air hose kinking and reduces wrist strain, while the heavy-duty 4-bolt backhead provides structural rigidity for long service life under heavy impact.

How do I properly lubricate and service this spike driver?

Fill the built-in internal oiler daily before each shift using pneumatic tool or rock drill oil to protect internal pistons and cylinders. Always disconnect and bleed the compressed air line before changing driving accessories or performing maintenance.
