FEATURES

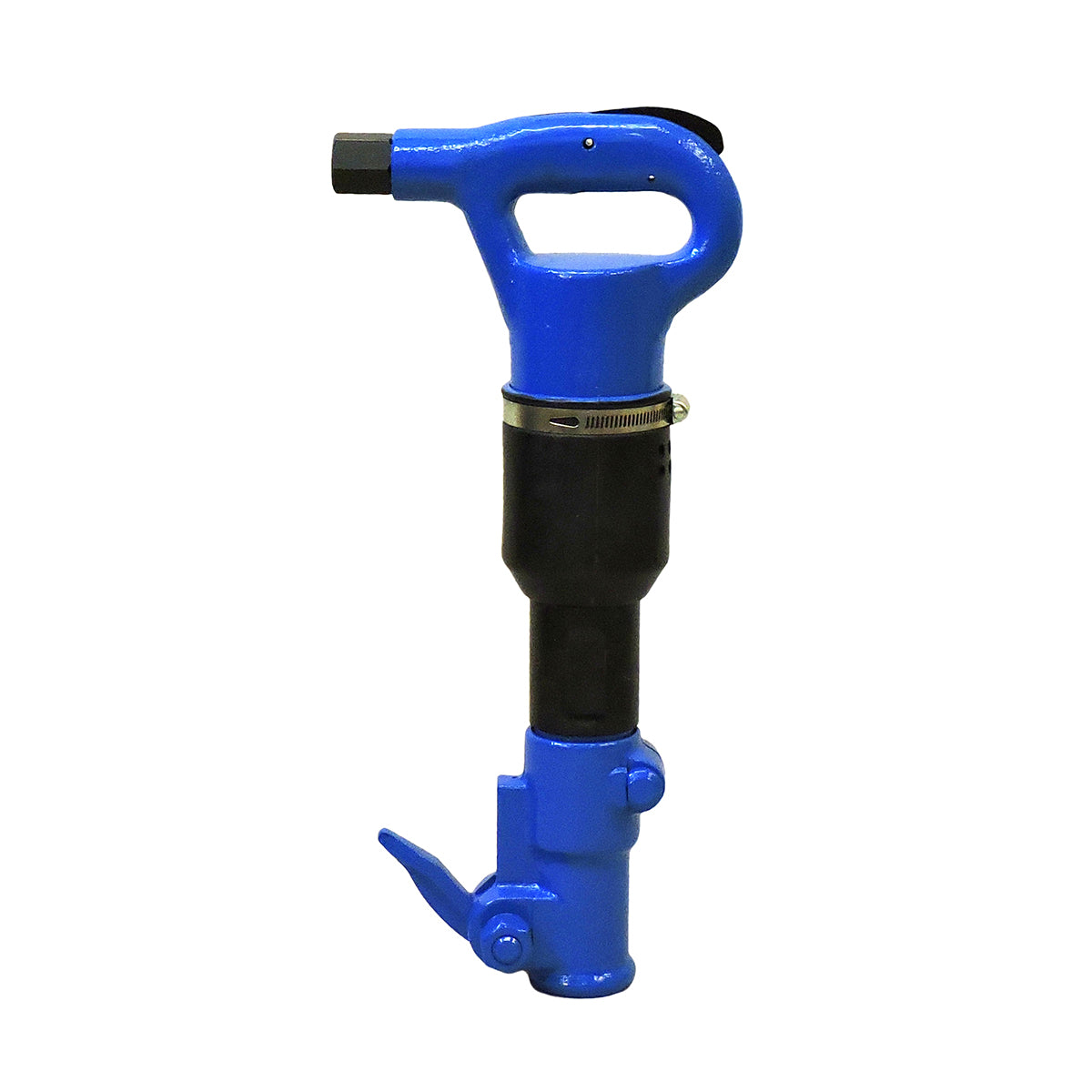

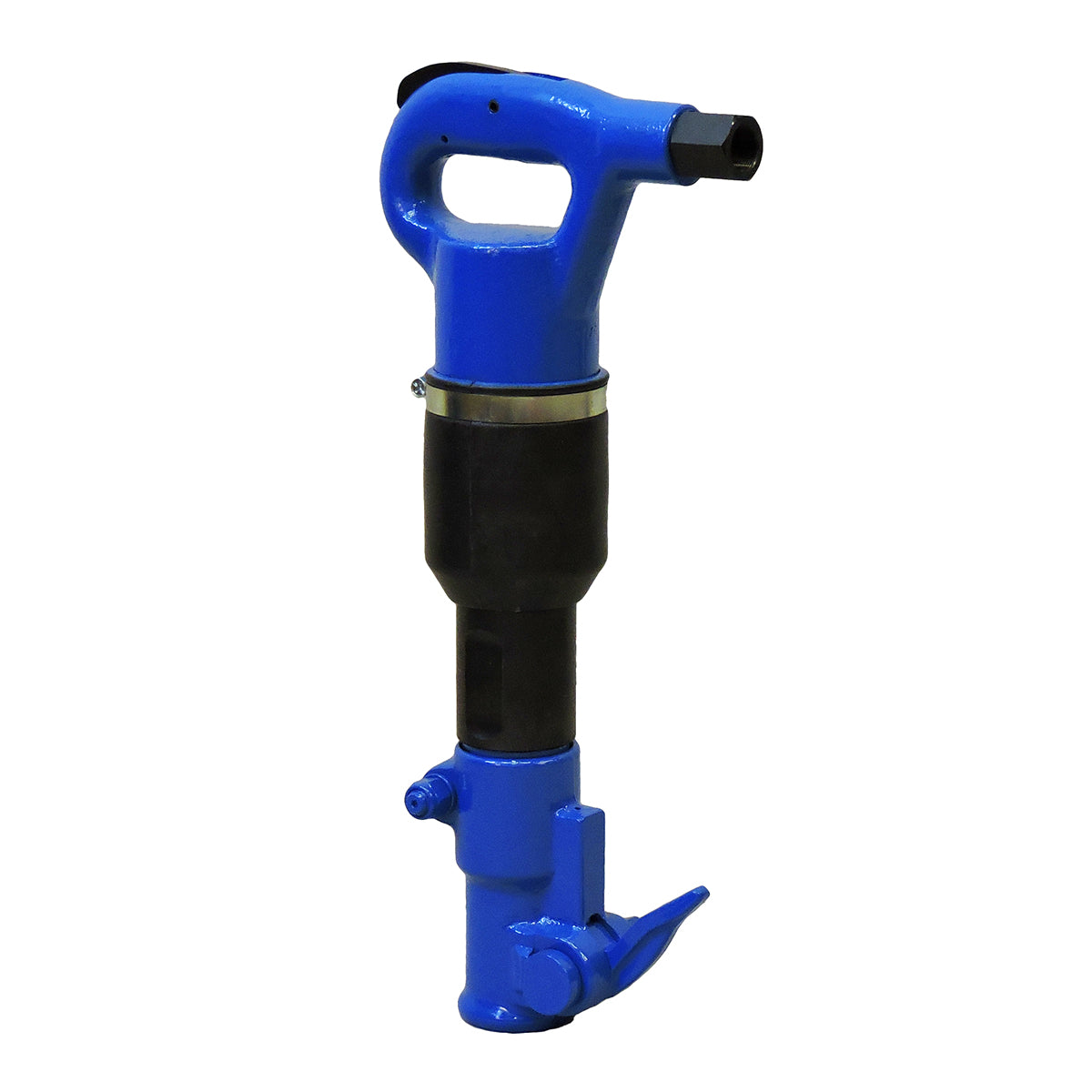

- 20 lb class Clay Digger
SCHEMATIC & PARTS LIST
KT-CD20 Schematic: Click Here
KT-CD20 Escquemático: En español haz clic aqui
TOOL DEMO VIDEO
SPECIFICATIONS
| Model Name | KT-CD20 CLAY DIGGER |
| Net Weight | 19 lbs (9 kg) |
| Length | 18.5 in (470 mm) |
| Bore | 1.418 in (36mm) |
| Stroke | 2.75 in (70 mm) |
| Blows Per Minute | 1560 |
| Chuck Sizes | 1 x 3 in (25 x 75 mm) Round 7/8 x 3 1/4 in (22 x 83 mm) Hex |
| Air Inlet (NPT) | 3/4 in (19 mm) Male 7/8 in (22.2 mm) Female |
| Air Consumption* | 49 cfm (1.40 m3/m) |
| *estimated |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
