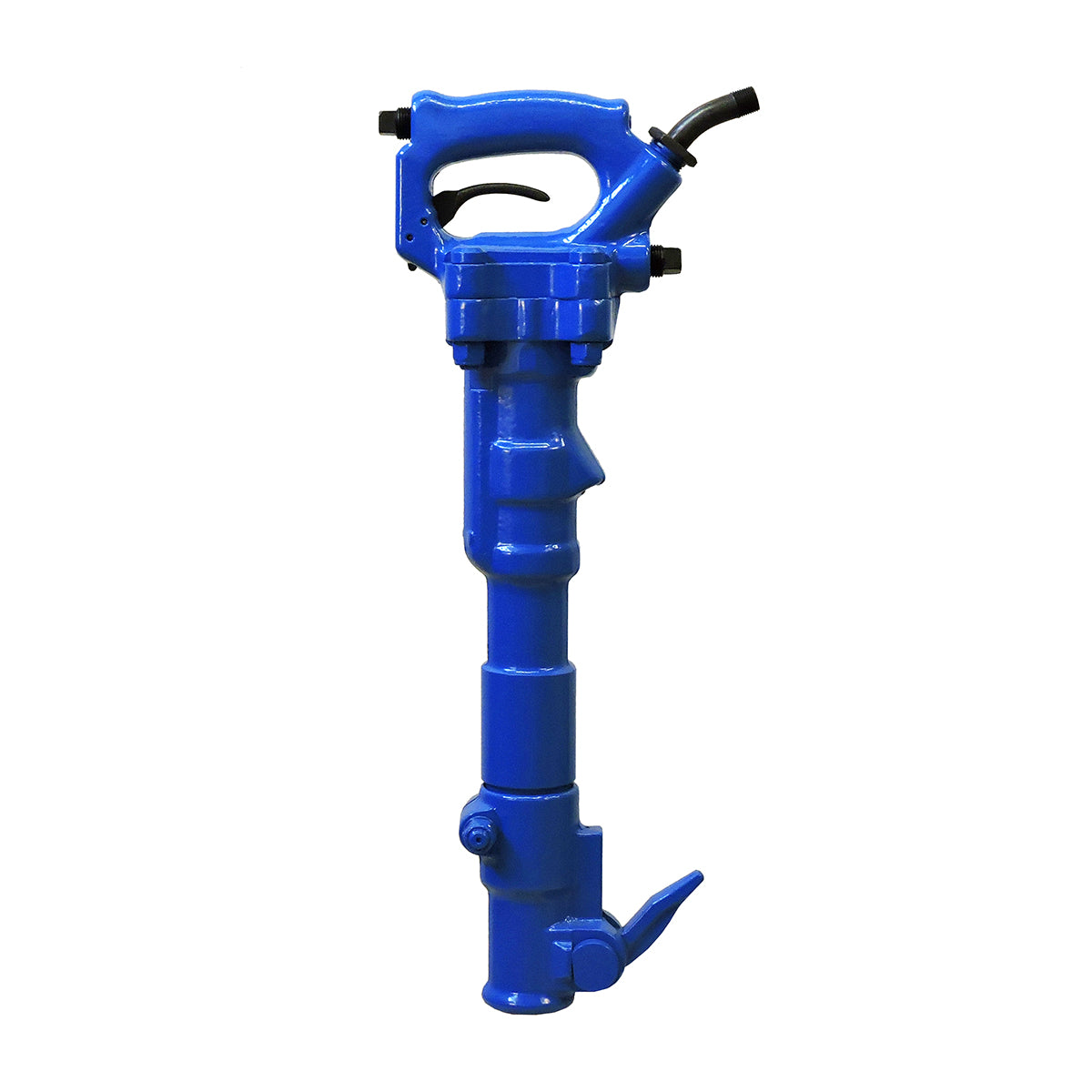

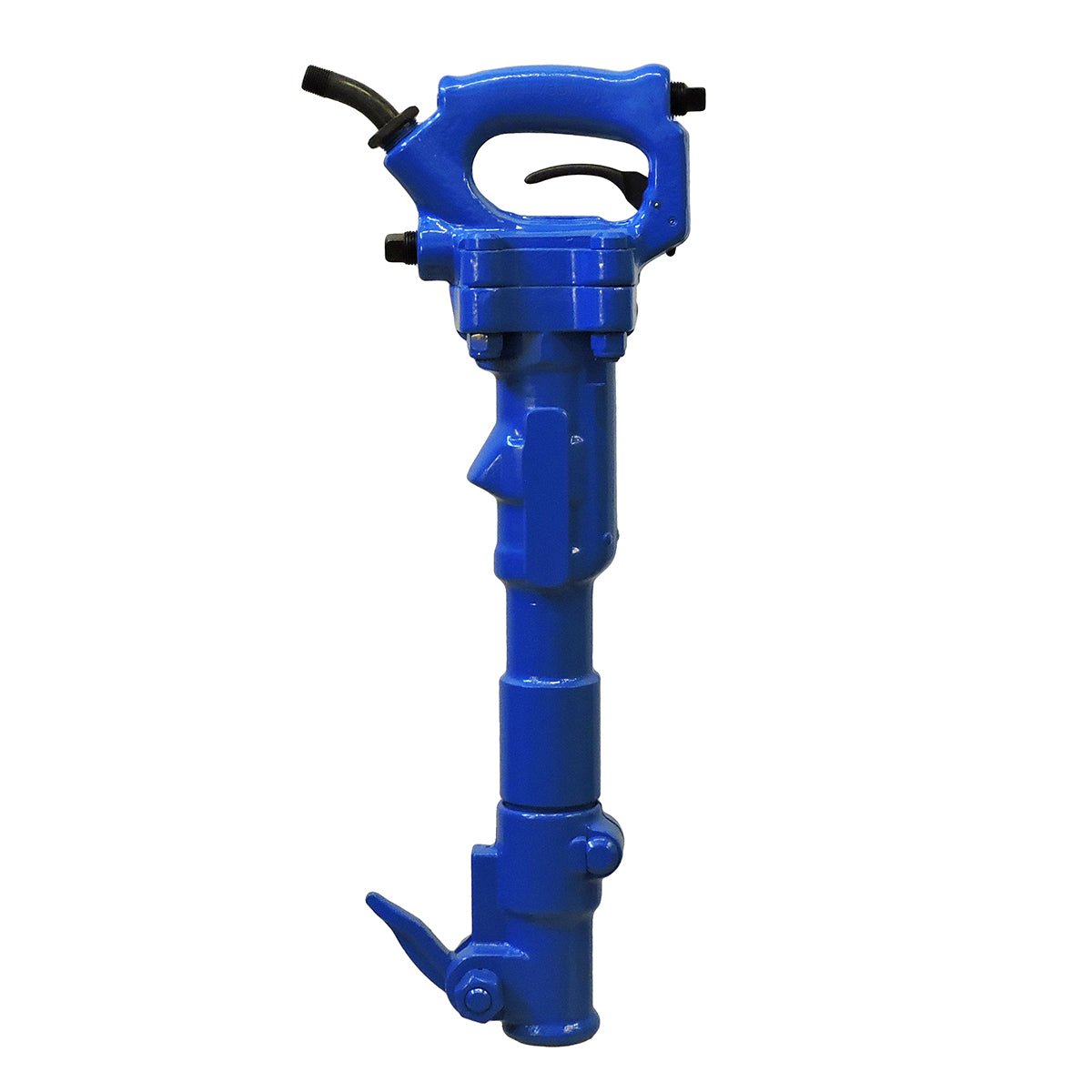

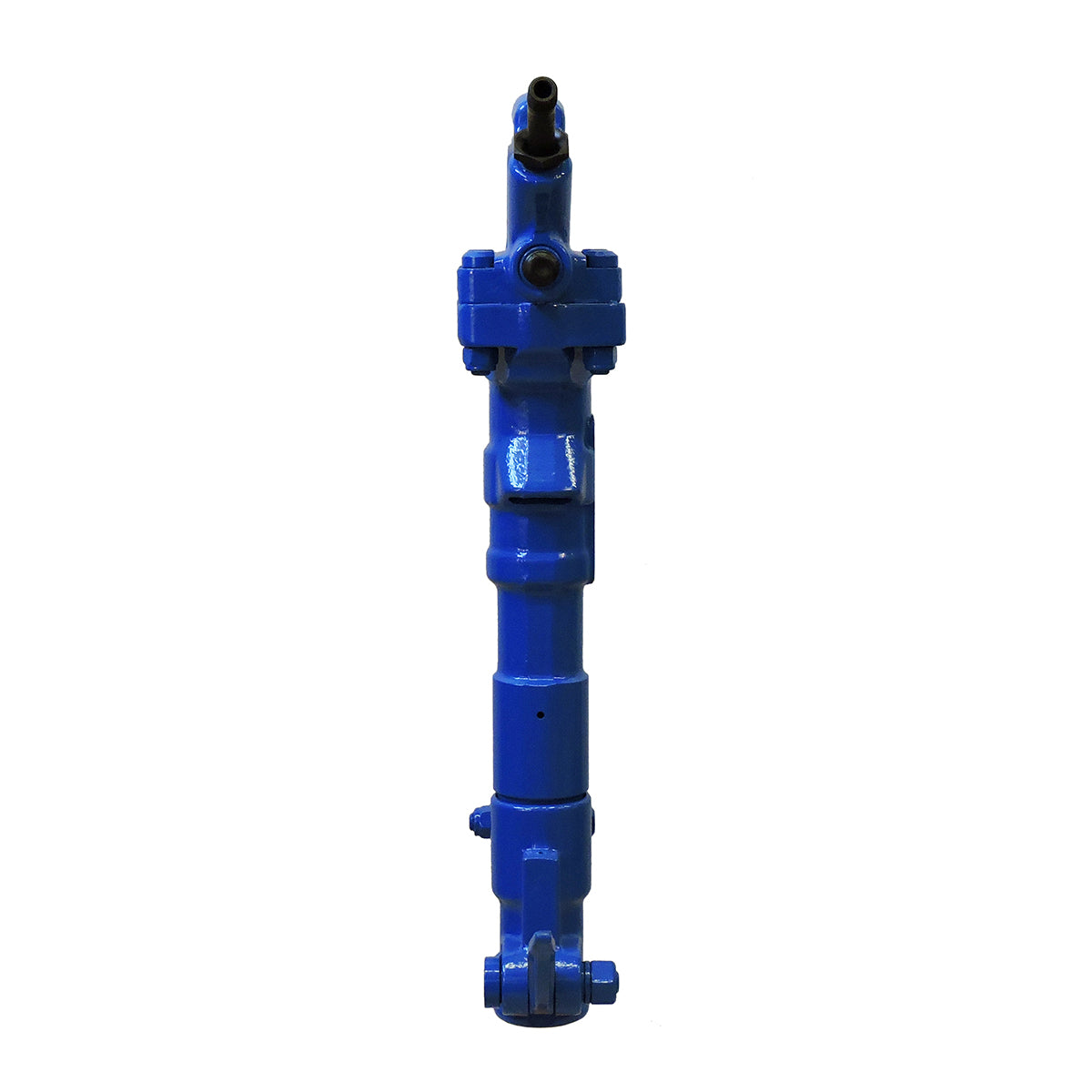

KT-CD30 CLAY DIGGER: 30 lb Class

Regular price

FEATURES

  • 30 lb class Clay Digger

SCHEMATIC & PARTS LIST

KT-CD30 Schematic: Click Here

KT-CD30 Escquemático: En español haz clic aqui

SPECIFICATIONS

Model Name KT-CD30 CLAY DIGGER
Net Weight 19 lbs (9 kg)
Length 18.5 in (470 mm)
Bore  1.418 in (36mm)
Stroke  2.75 in (70 mm)
Blows Per Minute 1560
Chuck Sizes 1 x 3 in (25 x 75 mm) Round
7/8  x 3 1/4 in (22 x 83 mm) Hex
 Air Inlet (NPT) 3/4 in (19 mm) Male
7/8 in (22.2 mm) Female
Air Consumption* 49 cfm (1.40 m3/m)
*estimated

*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.

WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.

Do NOT exceed 100 PSI (7BAR) working pressure.
