FEATURES

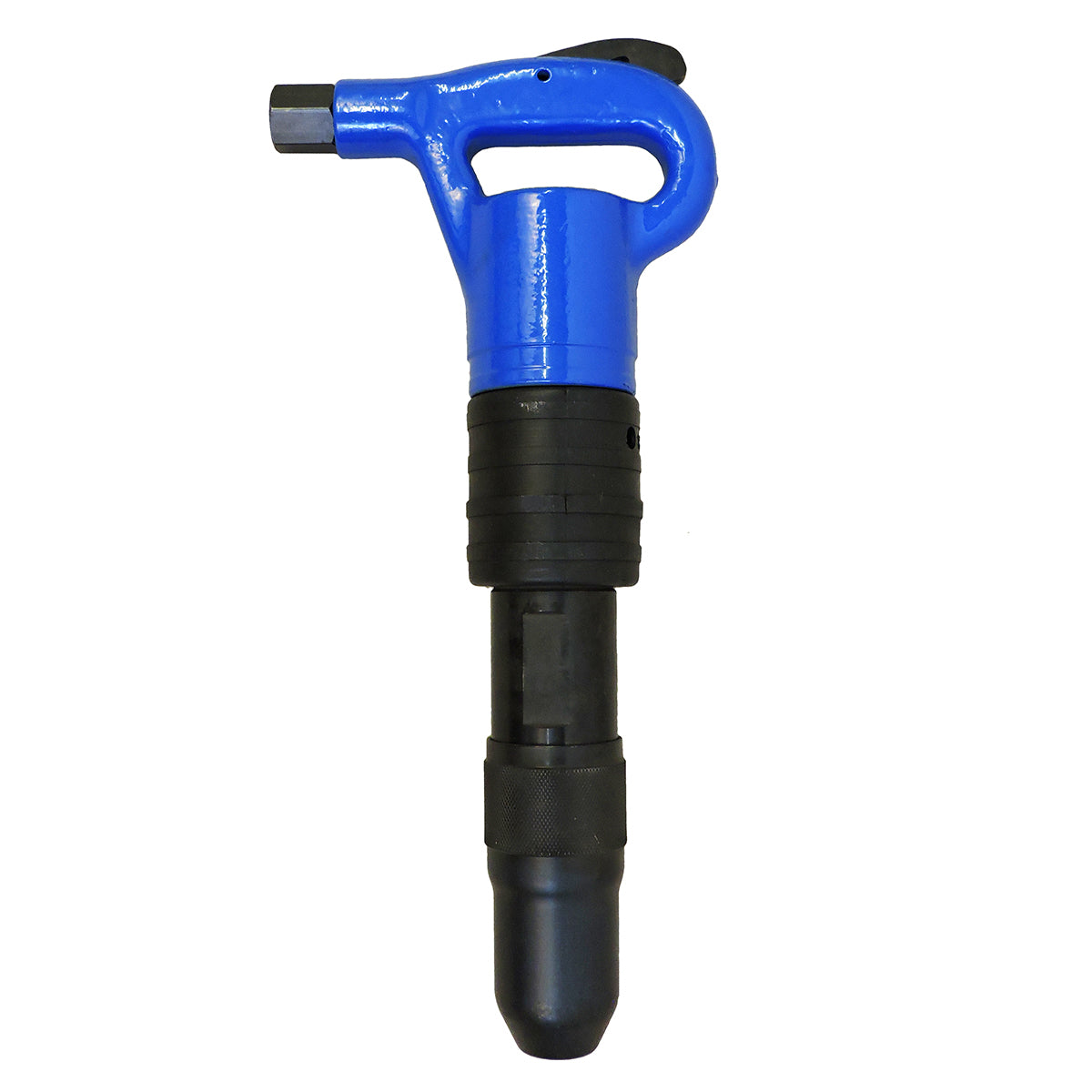

- 20 lb class Demolition Tool.
- Use this lightweight air tool for the demolition of concrete floors, pavement, masonry walls, and bridge decks.
- 7/8 x 3 1/4 inch Hex Shank KT-DT20 Demolition Tool 20lb Class Katco Air Tools
SCHEMATIC & PARTS LIST
KT-DT20 Schematic: Click Here for PDF
KT-DT20 Escquemático: En español haz clic aqui
SPECIFICATIONS
| Item Model Number | KT-DT20 DEMOLITION TOOL |
| Blows Per Minute | 1560 B.P.M. |
| Bore | 1.418 inch (36 mm) |
| Stroke | 2.75 inch (70 mm) |
| Net Weight | 23 lbs (10.5 kg) |
| Chuck Sizes | 11 X JUMBO |
| Air Inlet (NPT) |
3/4 inch (19 mm) Male 7/8 inch (22.2 mm) Female |
| Air Consumption* |
40 cfm (1.2 m3/m)
|
| Length | 17 Inch (432 mm) |
*Estimated
