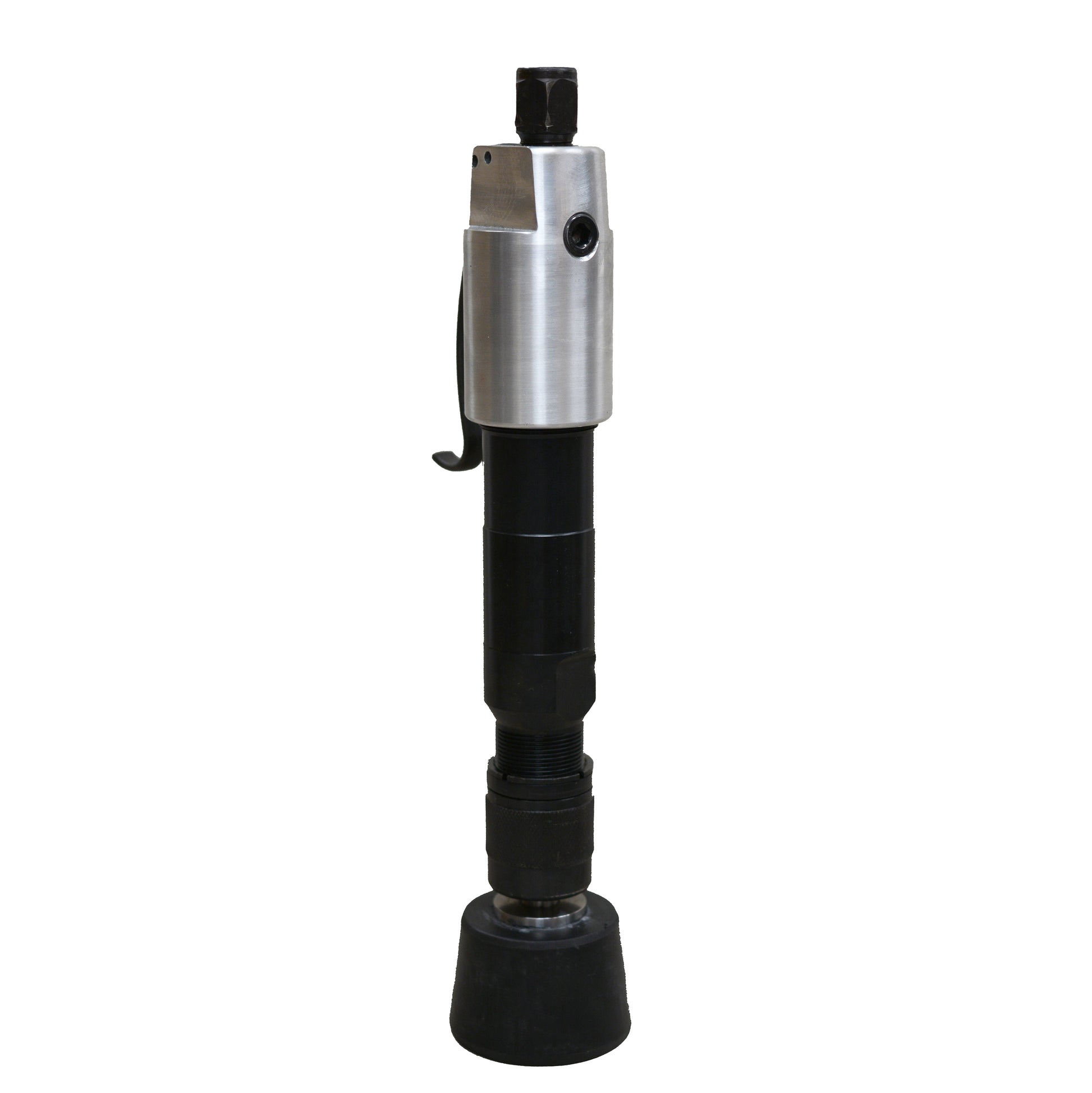

KT KT-2BAR Pneumatic Bench Sand Rammer
KT KT-2BAR Pneumatic Bench Sand Rammer
Couldn't load pickup availability
FEATURES
- Lightweight and compact rammer for uniformly ramming sand in foundries and molds.
- Use for casting sand in cylinders and molds.
SCHEMATIC
KT-2BAR / KT-2BAF Bench Rammer Schematic: Click Here for PDF
SPECIFICATIONS
| Model Name | KT-2BAR BENCH RAMMER |
| Net Weight | 7.4 lbs (3.37 kg) |
| Length | 19 in (483 mm) |
| Bore | 1 in (25 mm) |
| Stroke | 4 in (101.5 mm) |
| Blows Per Minute | 1240 |
| Air Inlet (NPT) | 1/2 in (13 mm) |
| Air Consumption* | 15.8 cfm (.447 m3/m) |
| *estimated | |
| Extension Pipe/Handle Assembly | Add Optional KT-XTH |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
APPLICATION
Foundry Sand Mold & Core Compaction
The KT-2BAR delivers 1,240 BPM with a deep 4-inch stroke to compact green sand, resin sand, and core mixtures evenly inside foundry flasks. Its lightweight 7.4 lb frame gives bench molders the precision needed to pack sand tightly into complex patterns without damaging delicate mold details.
Casting Cylinders & Sleeve Ramming
Engineered for metal casting facilities, this pneumatic bench tamper packs refractory materials and sand firmly into cylindrical sleeves and casting tubes. The consistent air-powered impact eliminates hidden voids and porosity to ensure smooth, high-integrity metal pours.
Refractory Lining & Crucible Maintenance
Ideal for furnace and ladle upkeep, the tool efficiently packs dense castable refractories, plastic clay mixes, and patching compounds into melting crucibles. Industrial maintenance crews rely on its focused impact energy to achieve uniform refractory density for extended furnace life.
Benchtop Soil & Concrete Sample Compaction
Materials testing labs and civil contractors use this air tamper to pack soil samples, test cylinders, and concrete test molds under controlled conditions. The optional KT-XTH extension pipe assembly allows operators to adapt the tool quickly for deeper bench molds and varied workstation heights.
FREQUENTLY ASKED QUESTIONS (FAQ)
What size air compressor is required to run the KT-2BAR Bench Rammer?
The tool requires an air compressor delivering at least 15.8 CFM at 90 PSI through a standard 1/2-inch NPT air connection.
What is the recommended operating pressure (PSI)?
Operate the rammer at 90 PSI (6 bar) for optimal compacting force. Do not exceed the 100 PSI (7 bar) maximum limit to prevent internal seal damage and premature wear.
Can this bench rammer be converted for stand-up use?

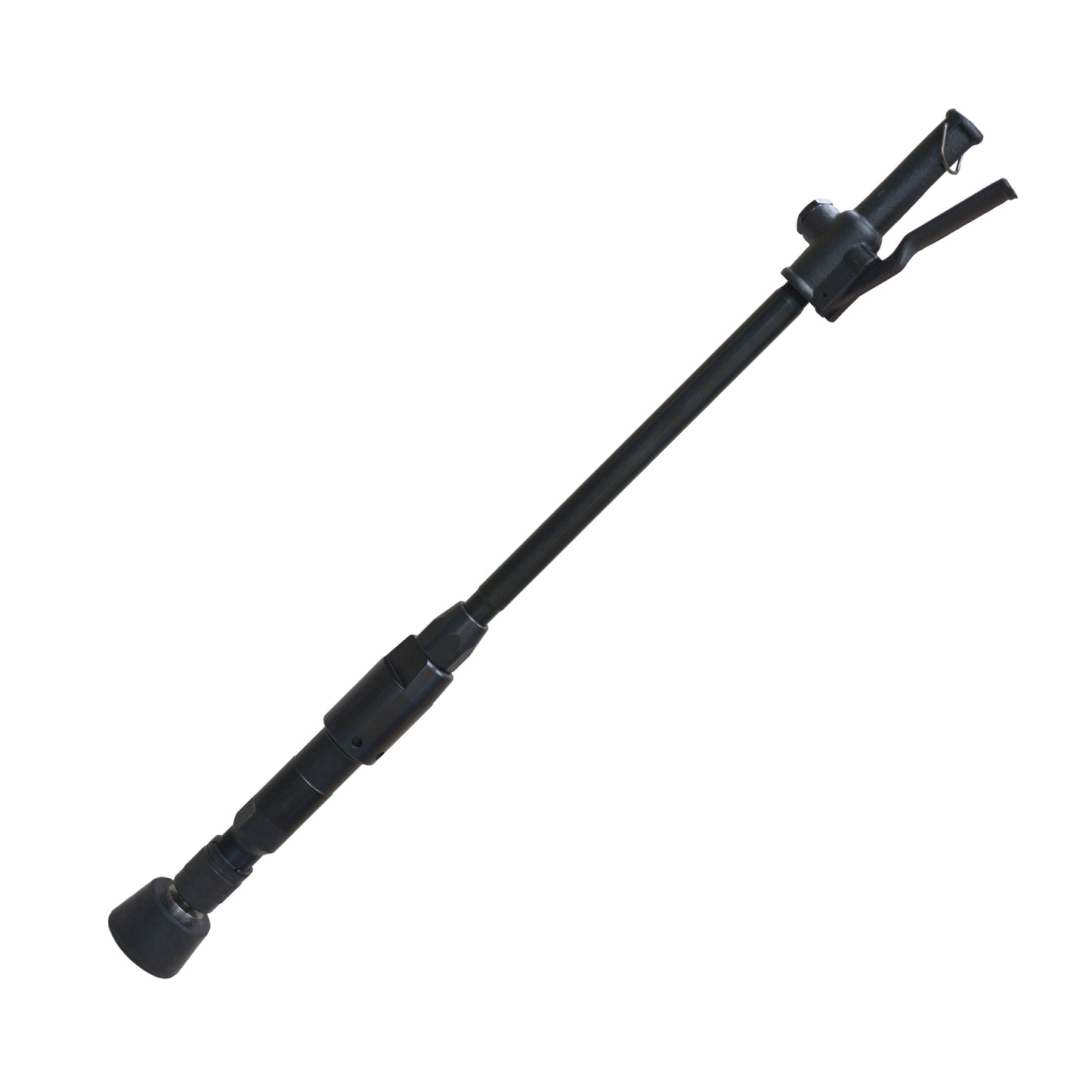

Yes, you can add the optional KT-XTH Extension Pipe/Handle Assembly to extend the reach of the tool for deeper molds or standing operations.
How do I maintain and lubricate the KT-2BAR?
Add a few drops of air tool oil directly into the 1/2-inch air inlet daily before each shift to protect internal seals, the cylinder, and the piston. Always disconnect and bleed the air supply line before servicing the tool or changing tamping butts.
