Katco Tools

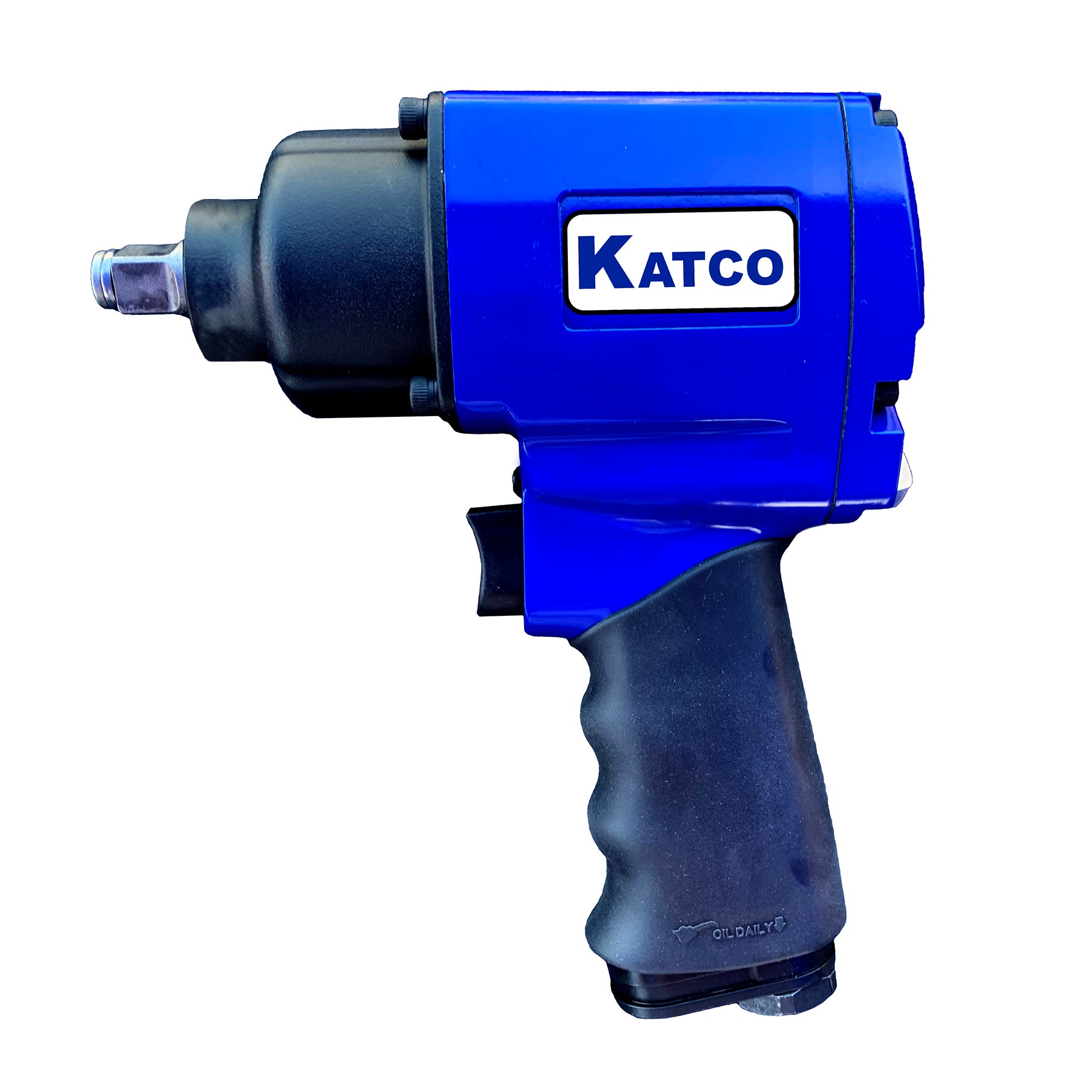

KT-IW6514 IMPACT WRENCH
KT-IW6514 IMPACT WRENCH
Regular price
$488.00 USD
Regular price
Sale price
$488.00 USD
Quantity
Couldn't load pickup availability
FEATURES
- Rear Exhaust
- Adjustable 3 speeds for Forward/Reverse mode.
- Use for automotive and heavy truck repair, construction, or assembly line.
- Compact durable design.
- Excellent power-to-weight ratio.
SCHEMATIC & PARTS LIST
KT-IW6514 Schematic: Click Here
SPECIFICATIONS
| Model Name | KT-IW6514 IMPACT WRENCH | |
| Net Weight | 11 lbs (5 kgs) | |
| Free Speed |
|
|
| Max. Torque (10 sec) |
1,400 ft-lb (1898 nm) | |
| Square Drive | 3/4" (19 mm) | |
| Bolt Capacity | 1-1/2" (38 mm) | |
| Air Inlet Size | 1/4" NPT/PT | |
| Min. Hose size | 3/8" (10 mm) | |
| Avg. Air Consumption* | 0.747 m^3/min | |
| Operating Air Pressure | 90 psi (6.2 bar) |
