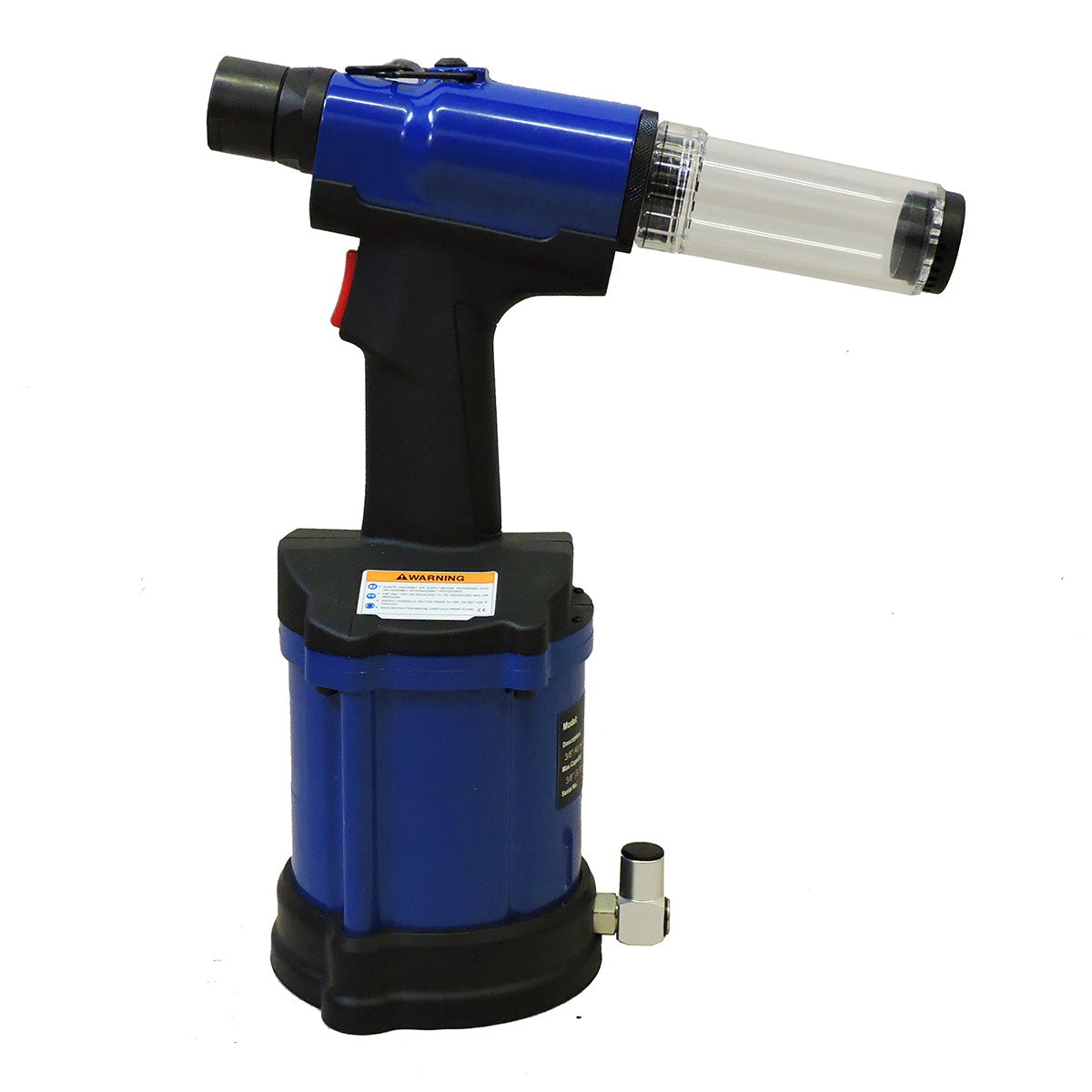

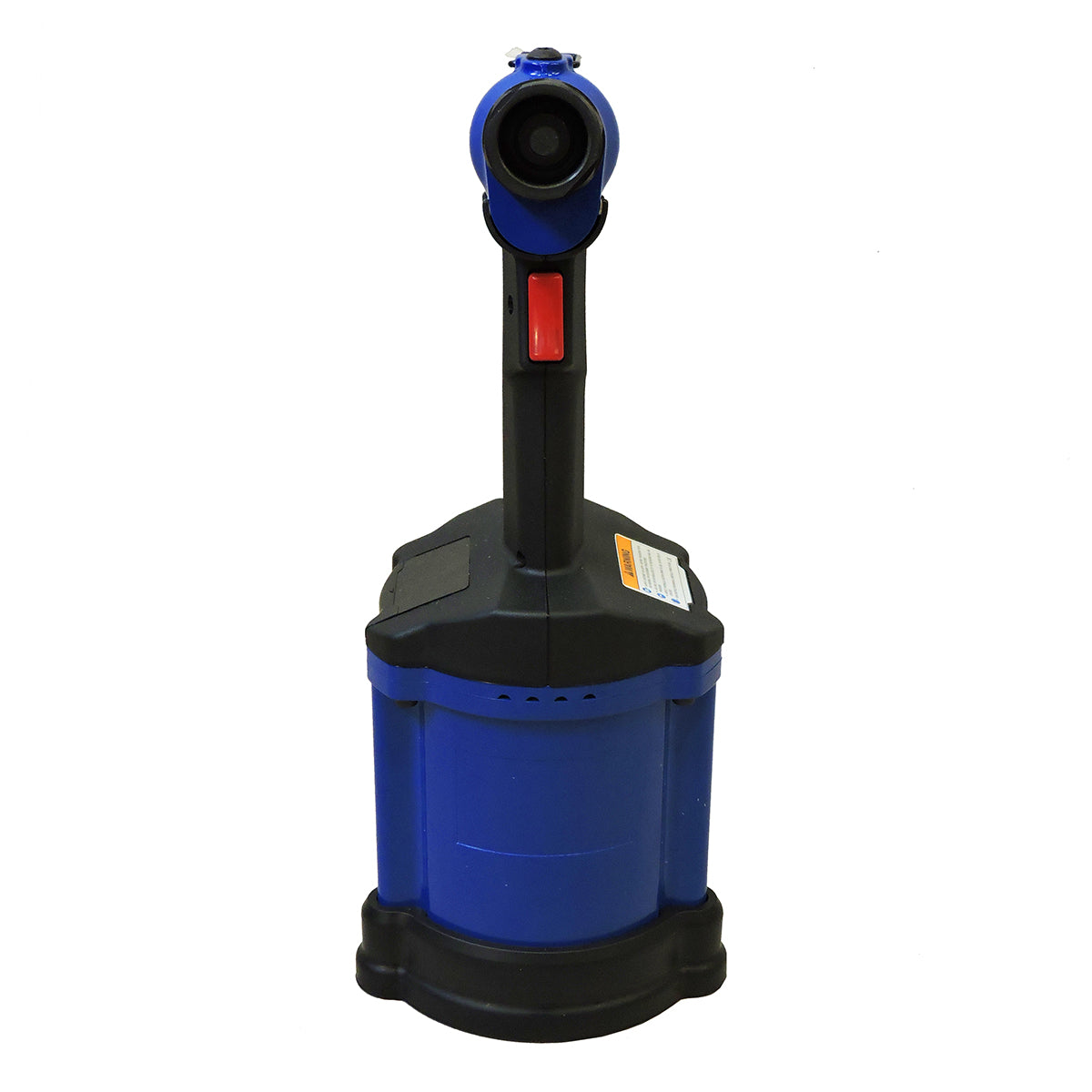

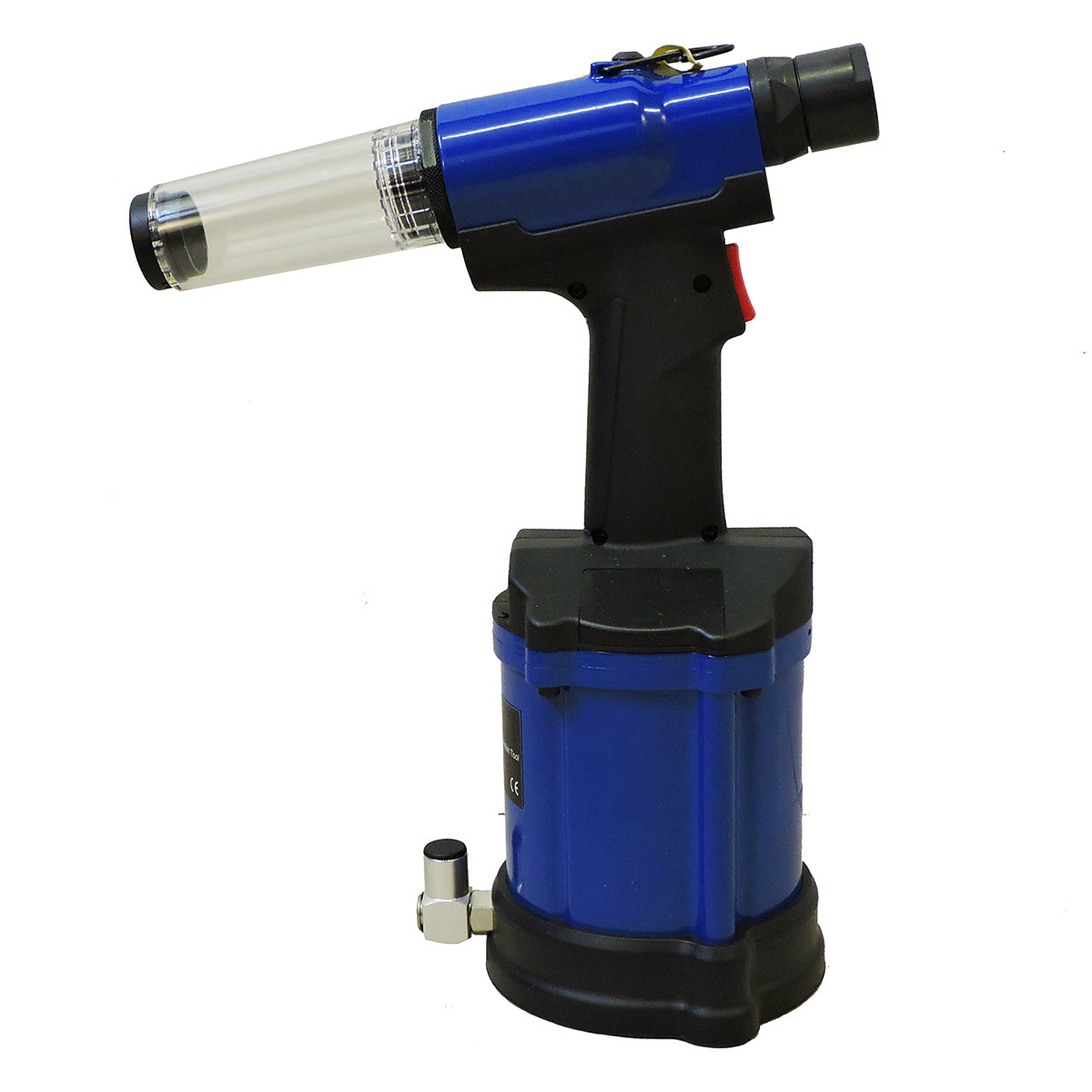

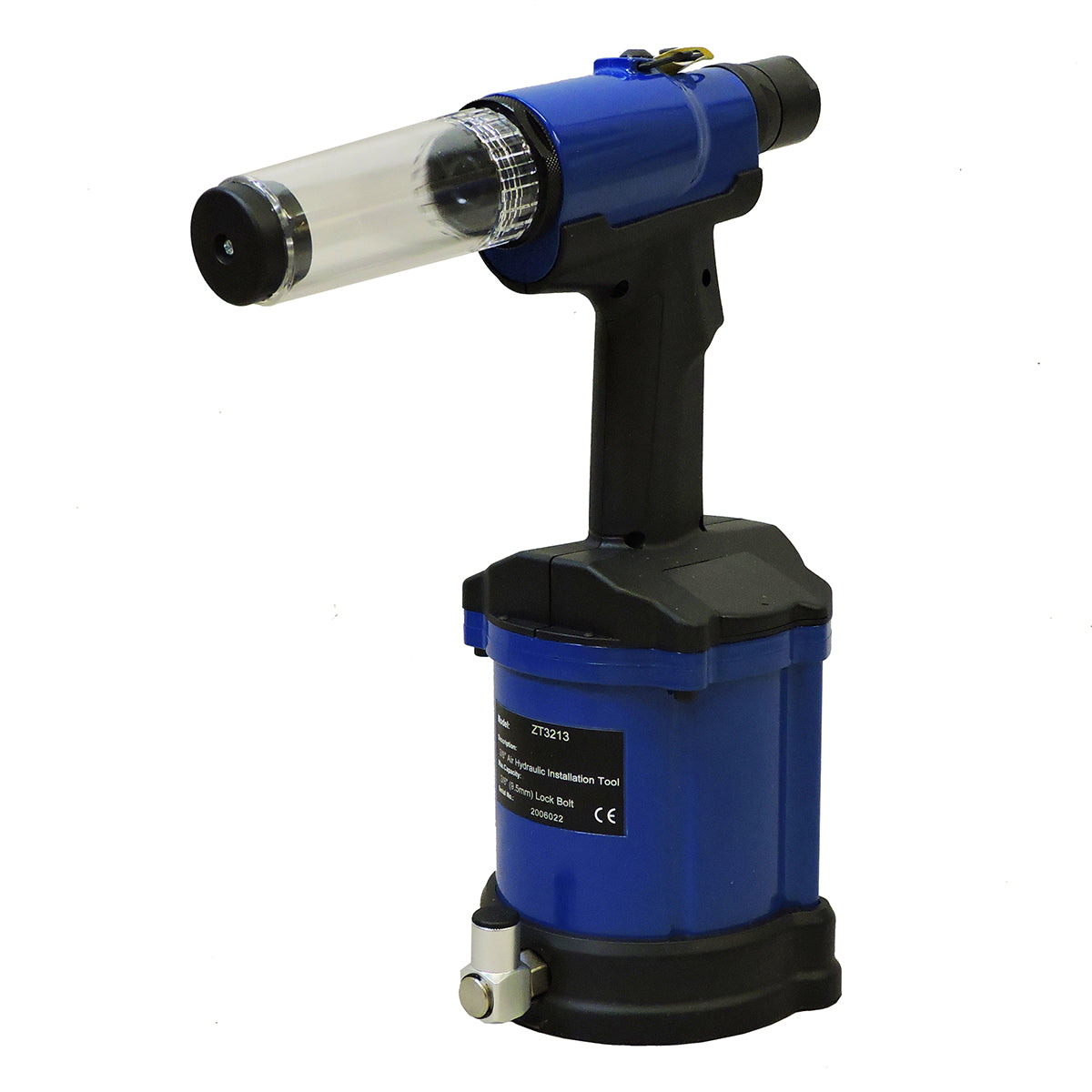

KT-LB3213 INSTALLATION TOOL

Regular price $3,156.00

FEATURES

  • Fit with HUCK-C6L & Magna Grip AVDEL- Avdelok & Maxlok lock bolt and Magna-Lok and BOM nose assemblies.
    • SPECIAL ADAPTER INCLUDED
  • Built with patented modular units assembled in a composite clamshell housing for easy tool servicing.
  • Swivel air inlet design for easy maneuverability during work.

SCHEMATIC & PARTS LIST

KT-LB3213 Schematic: Click Here

SPECIFICATIONS

Model Name KT-LB3213 Lock Bolt Tool
Max Setting Capacity 1/4 lock bolts
Traction Power 7,050 lbs (3,200 kgf)
Net Weight 6.4 lb (2.9 kg)
Stroke Length 13mm
Nosepieces Equipped inch(mm) Nose not available

*DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.


TOOL CONDITION

  • New
