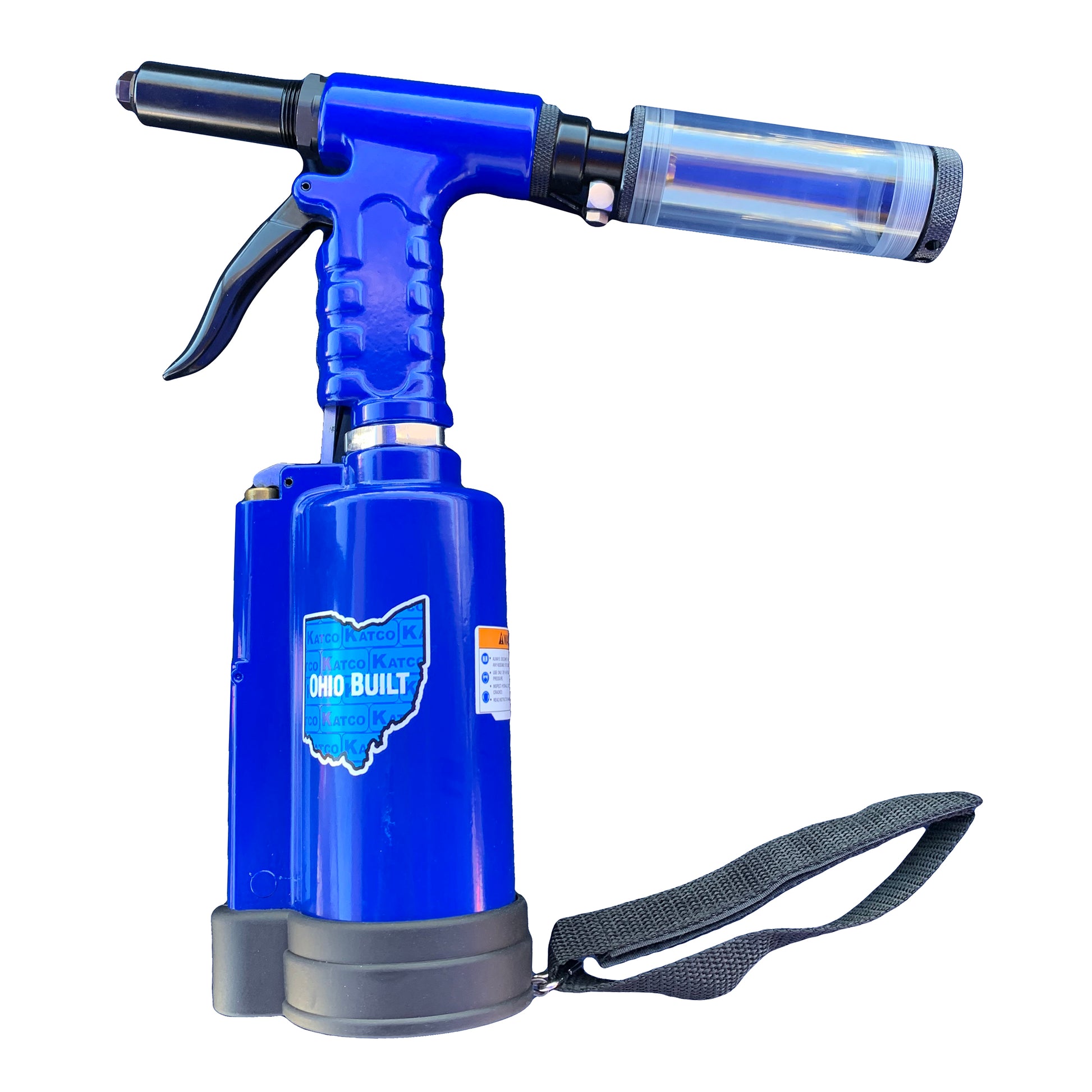

KT-R0918V RIVETER

Regular price $327.00

FEATURES

  • Will pull up to 3/16" (4.8mm) diameter rivets in all material types (Aluminum/Steel/Stainless Steel).
  • Riveter includes 3/32", 1/8", 5/32", and 3/16" nose-pieces for a variety of rivet diameters.
  • Full-body aluminum construction (forged aluminum head, cast aluminum body).
  • Vacuum Mandrel Collection System keeps work area clean.
  • Ships in molded storage case w/ kitted accessories.

SCHEMATIC & PARTS LIST

KT-R0918V Schematic:

SPECIFICATIONS

Model Name KT-R0918V RIVETER
Net Weight 4.07 lb (1.85 kg)
Traction Power
1,983 lb (900 kgf)
Stroke Length
1 1/16" (18mm)
Square Drive 1/2" (12.7 mm)
Air Inlet Size 1/4" NPT/PT
Min. Hose size 3/8" (10 mm)
Nose-pieces Equipped for 3/32"(2.4mm) 1/8"(3.2mm) 5/32(4.0mm) 3/16(4.8mm)
Operating Air Pressure 90 psi (6.2 bar)

TOOL CONDITION

  • New
