FEATURES

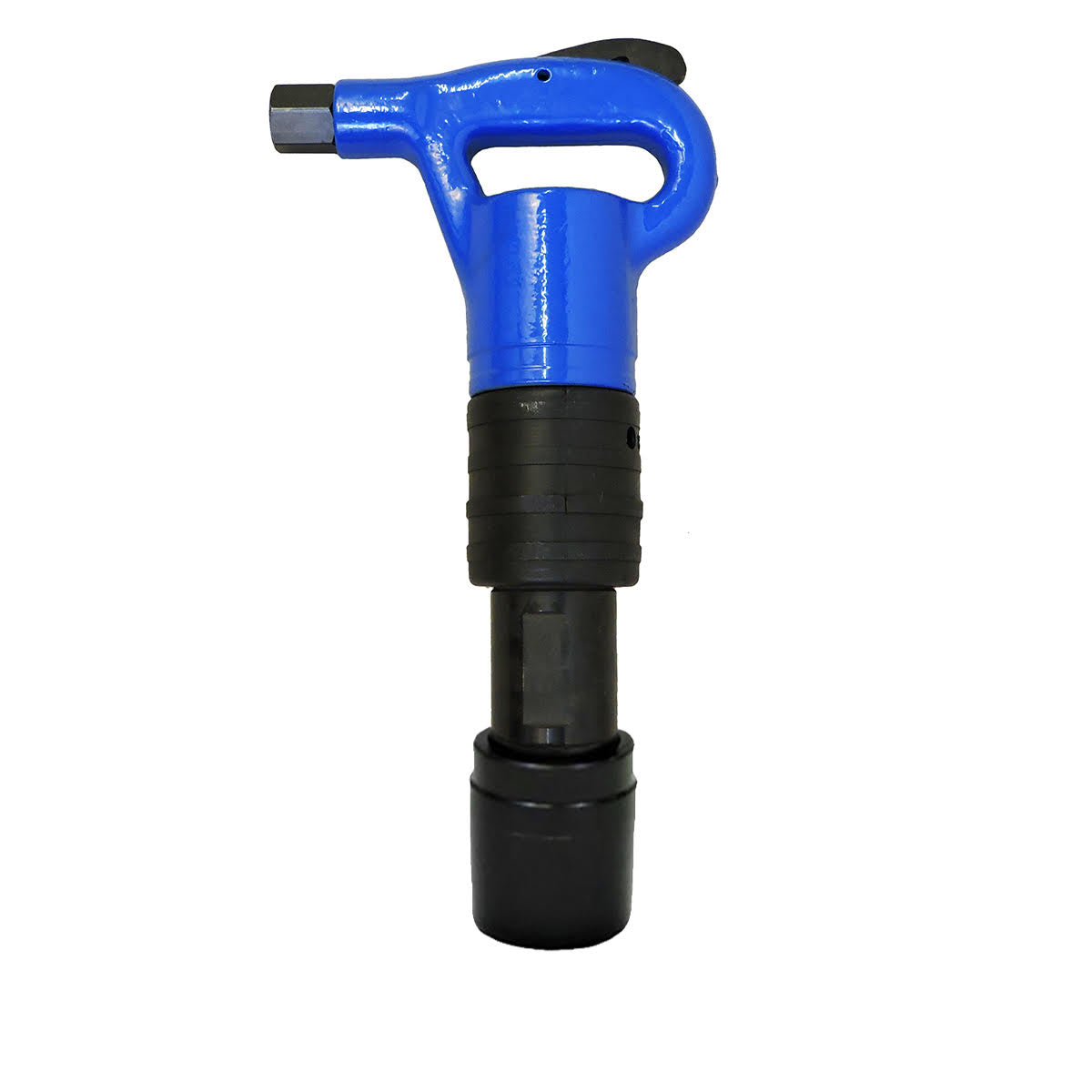

Made in Ohio, the hard-hitting KATCO RB5 Rivet Buster features 1560 bmp, is designed to run at 85 psi and works easily with 90 cfm compressors.
Its oil free operation is great for low maintenance rental applications and at 23 pounds, this lightweight, top trigger air tool allows for multiple working positions. Good for removing hardened cement in mixer drums and general demolition.

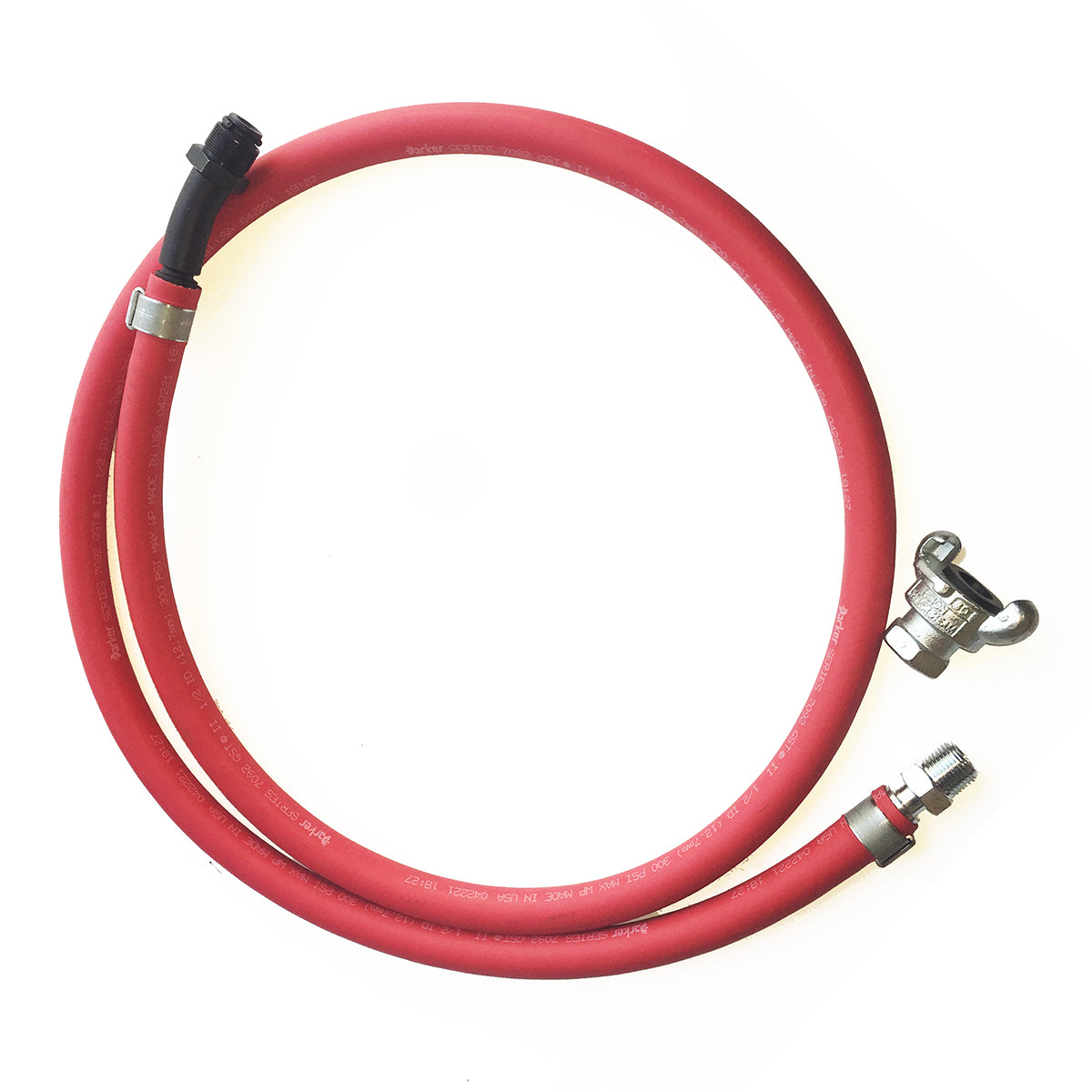

The KT-RB5 Rivet Buster comes with the industry standard Jumbo 11x retainer assembly, neoprene exhaust deflector, air inlet swivel, and whip hose assembly.
SCHEMATIC & PARTS LIST
TOOL DEMO VIDEO
SPECIFICATIONS
| Item Model Number | KT-RB5 RIVET BUSTER 20 lb CLASS |
| Blows Per Minute | 1560 B.P.M. |
| Bore | 1.418 inch (36 mm) |
| Stroke | 2.75 inch (70 mm) |
| Net Weight | 23 lbs (10.5 kg) |
| Chuck Sizes | 11 X JUMBO |
| Air Inlet (NPT) |
3/4 inch (19 mm) Male 7/8 inch (22.2 mm) Female |
| Air Consumption* |
40 cfm (1.2 m3/m)
|
| Length | 17 Inch (432 mm) |
*Estimated
