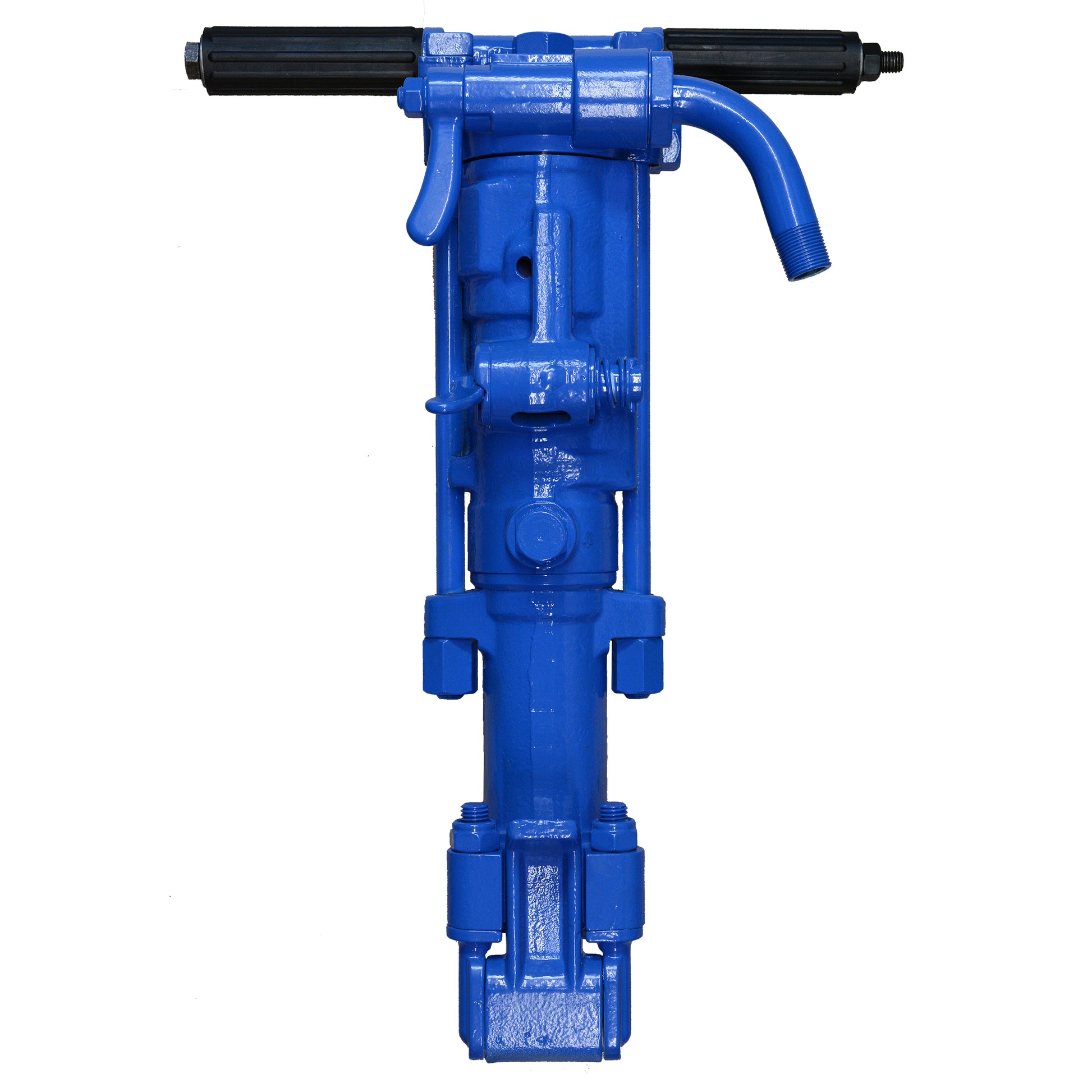

- 50 lb Class Rock Drill.
SCHEMATIC & PARTS LIST
KT-RD50 Schematic: Click Here
|Net Weight||53 lbs (24 kg)|
|Length||23 in (584 mm)|
|Bore||2.64 in (67 mm)|
|Stroke||2 in (51 mm)|
|Blows Per Minute||1980|
|Chuck Sizes||1 x 4 1/4 in (25 x 108 mm)
7/8 x 4 1/4 in (22 x 108 mm)
7/8 x 3 1/4 in (22 x 83 mm)
|Air Inlet (NPT)||3/4 in NPT (19 mm)|
|Air Consumption*||102 cfm (48 l/m)|
|Oil Tool||Use ISO Grade 150 Tool Oil in Breakers|
*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
