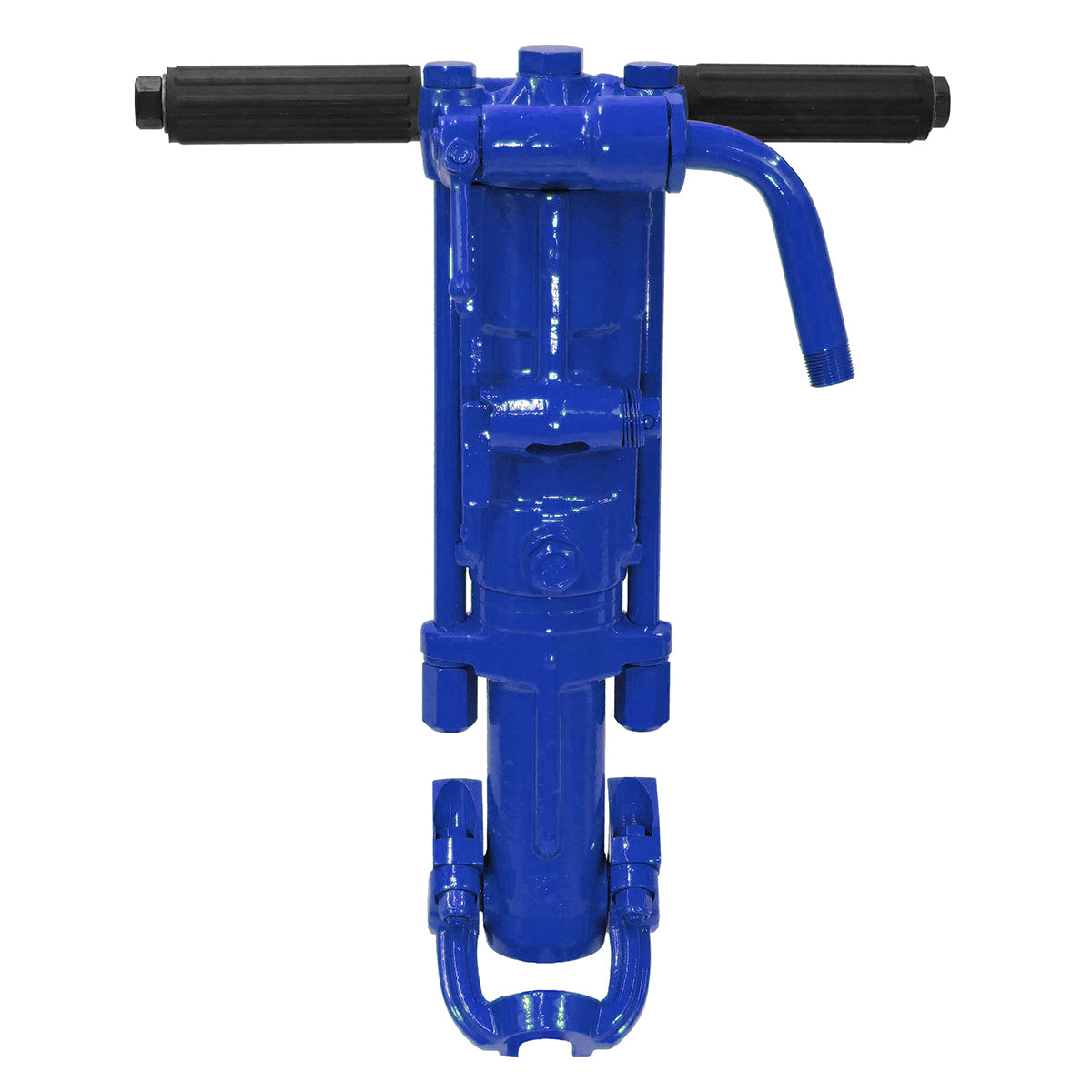

KT-RD75 ROCK DRILL: 65 lb Class

Regular price

FEATURES *Scroll down for specs & video!*

  • 65 lb Class Rock Drill

SCHEMATIC & PARTS LIST

KT-RD75 Schematic: Click Here

KT-RD75 Escquemático: En español haz clic aquí


SPECIFICATIONS

Model Number KT-RD75 ROCK DRILL
Net Weight 61 lbs (27.5 kg)
Length

23.75 in (603 mm)

Bore  2.625 in (67 mm)
Stroke  3.22 in (82 mm)
Blows Per Minute 2250
RPM 200
Chuck Sizes 1 x 4 1/4 in (25 x 108 mm)
7/8 x 4 1/4 in (22 x 108 mm)
7/8 x 3 1/4 in (22 x 83 mm)
 Air Inlet (NPT) 3/4 in (19 mm)
Air Consumption* 98 cfm (2.77 m3/m)
*estimated
Oil Tool Use ISO Grade 150 Tool Oil in Breakers

*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.

WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.

Do NOT exceed 100 PSI (7BAR) working pressure.
