FEATURES

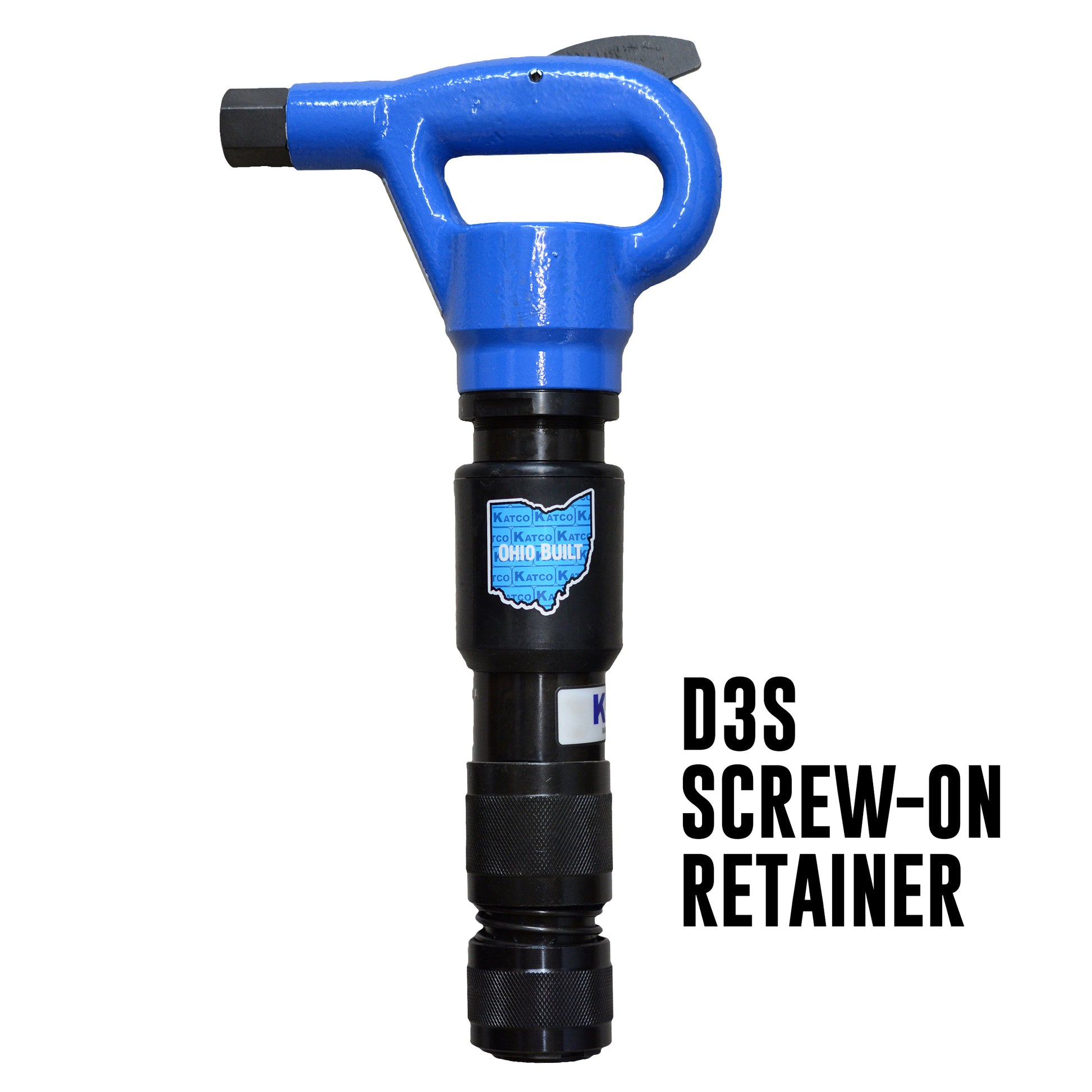

- D-Handle Chipping Hammer
- Screw-On Ball Retainer or Screw Cap Retainer
SCHEMATIC
KTC-D3S Schematic: Click Here
KTC- D3S Escquemático : En español haz clic aquí
SPECIFICATIONS
| Item Model Number | KTC-D3S |
| Blows Per Minute | 2200 B.P.M. |
| Bore | 1.125 inch (29 mm) |
| Stroke | 3 inch (75 mm) |
| Net Weight | 15 lbs (6.5 kg) |
| Chuck Sizes |
0.58 inch (14.8 mm) Hex 0.68 inch (17.5 mm) Round |
| Air Inlet (NPT) | 3/8 inch (10 mm) |
| Air Consumption |
32 cfm (1.4 m3/m)
|
| Length | 15.5 inch (395 mm) |
