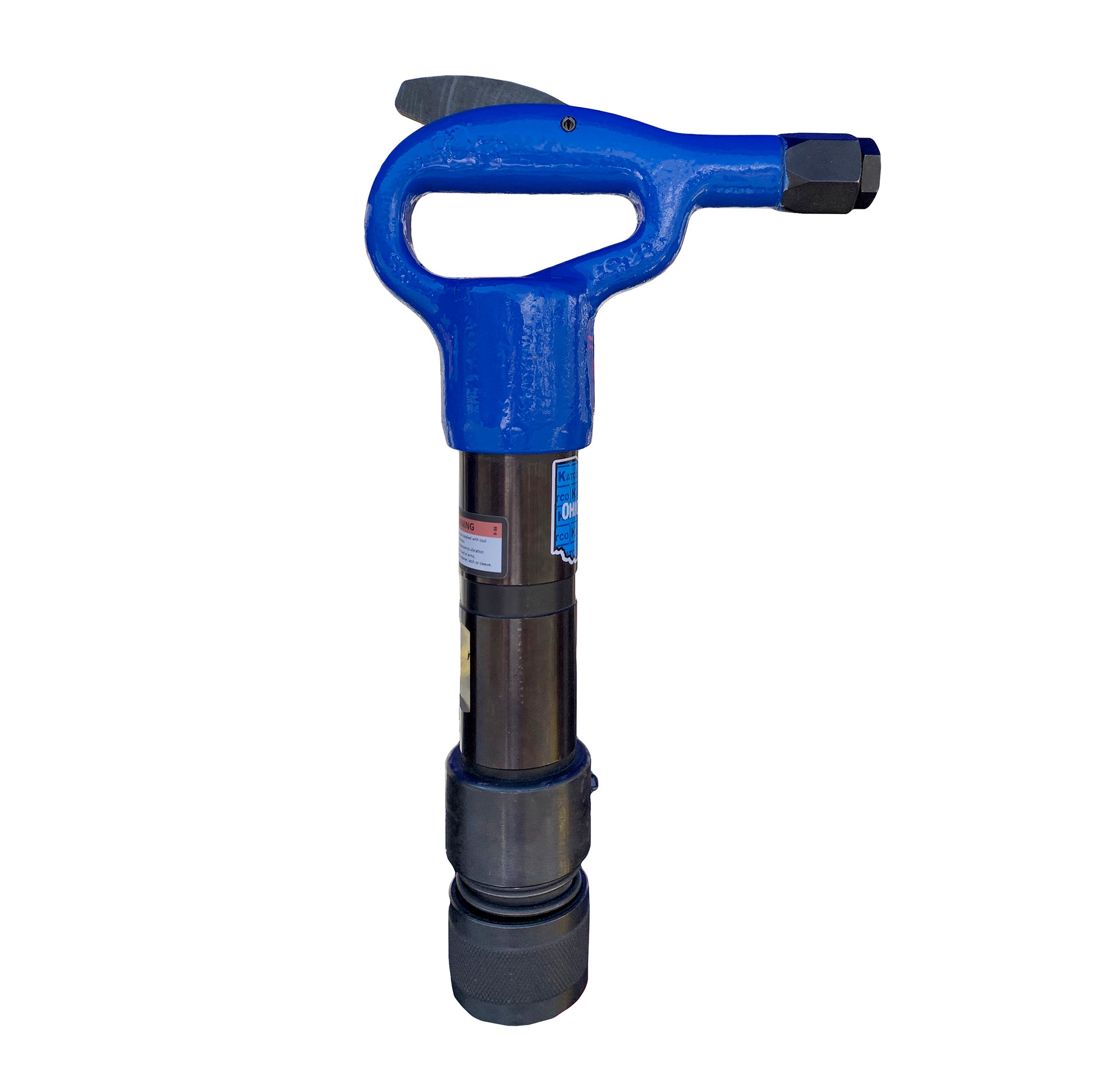

KTC-L CHIPPING HAMMER LIGHT WEIGHT

Regular price



FEATURES

  • Top Trigger with a D Handle
  • Lightest Weight Chipping Hammer

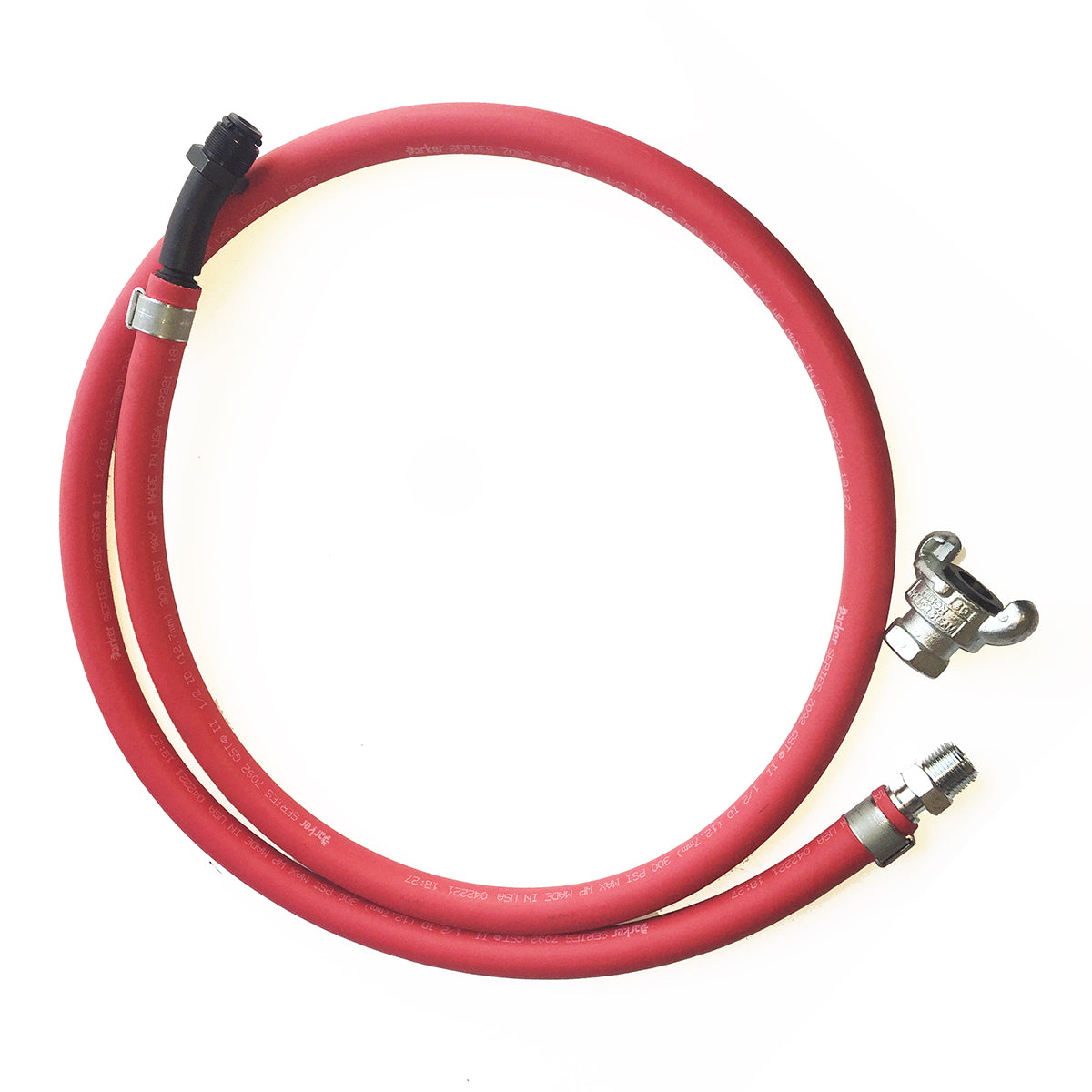

  • Includes Whip Hose

SCHEMATIC & PARTS LIST

KTC-L Schematic: Click Here

KTC-L Escquemático: En español haz clic aqui


SPECIFICATIONS



Item Model Number KTC-L Chipping Hammer
Blows Per Minute 2550 B.P.M.
Bore 1.125 inch (29 mm)
Stroke 2.375 inch (60 mm)
Net Weight 11 lbs (5 kg)
Chuck Sizes

3/4 x 2 inch (19 x 50 mm)

0.580 inch (14.8 mm) Hex

0.680 inch (17.5 mm) Round

Air Inlet (NPT)

3/8 inch (10 mm) in male

7/8 (22.2 mm) in female

Air Consumption
15.8 cfm (0.45 m3/m)
Length 16.5 Inch (410 mm)

*Use ISO 32 Tool Oil (10w Tool Oil)
