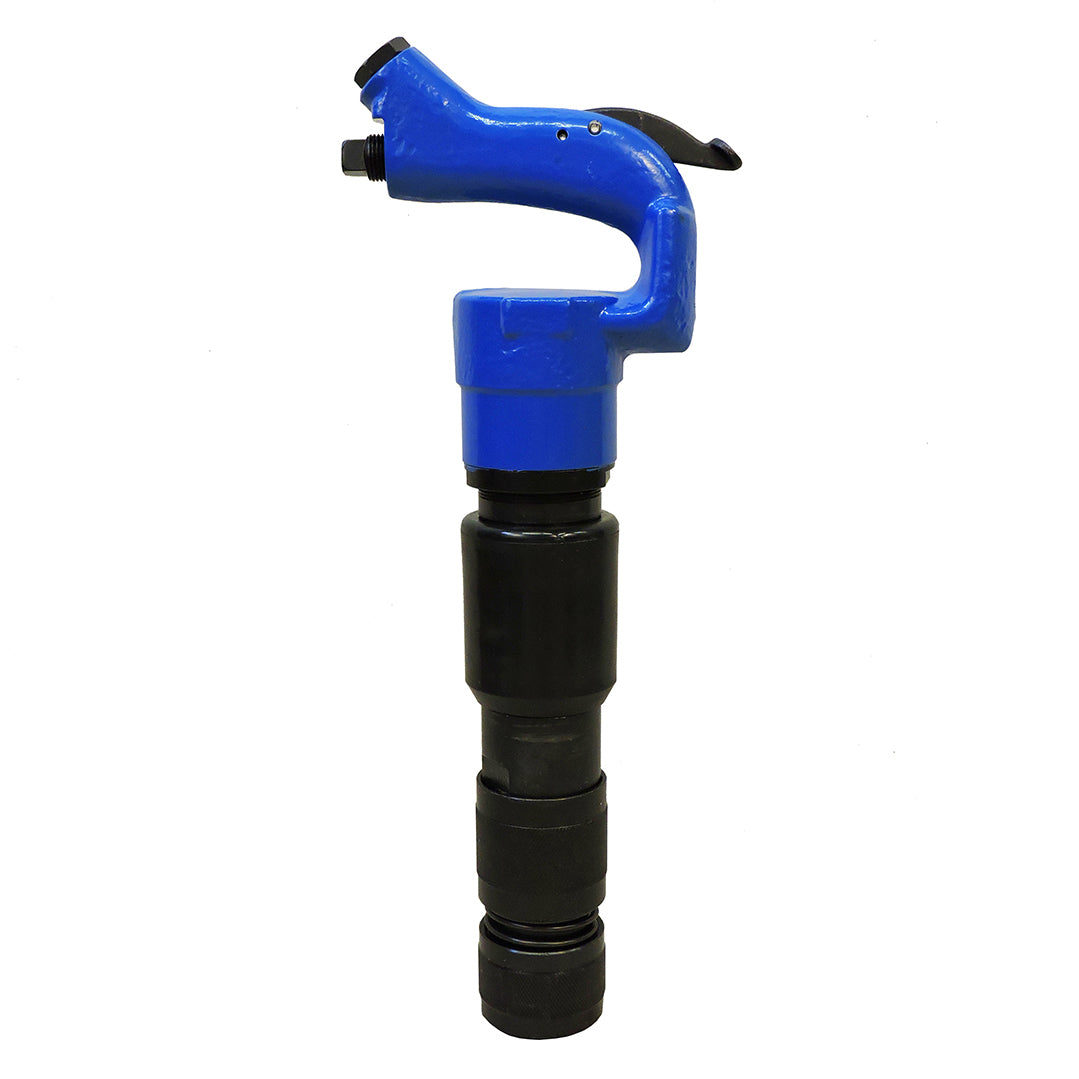

KTC KTC-P3S Pneumatic Open Handle Chipping Hammer
KTC KTC-P3S Pneumatic Open Handle Chipping Hammer
Couldn't load pickup availability
FEATURES
- This chipping hammer has an open handle.
- Screw-On Retainer
- Used for chipping concrete in parking garages, light demolition, and building restoration.
SCHEMATIC & PARTS LIST
KTC-P3S Schematic: Click Here
KTC-P3S Escquemático : En español haz clic aquí
SPECIFICATIONS
| Item Model Number | KTC-3PS |
| Blows Per Minute | 2200 B.P.M. |
| Bore | 1.125 inch (29 mm) |
| Stroke | 3 inch (76 mm) |
| Net Weight | 14 lbs (6.4 kg) |
| Chuck Sizes |
0.580 inch (14.8 mm) Hex 0.680 inch (17.5 mm) Round |
| Air Inlet (NPT) | 3/8 inch (10 mm) |
| Air Consumption |
31.5 cfm (0.89 m3/m)
|
| Length | 15.25 inch (387 mm) |
APPLICATION
Parking Garage & Concrete Deck Repair
The KTC-P3S delivers 2,200 BPM of rapid impact energy to chip spalled concrete and expose rusted rebar on parking garage decks and ramps. Its lightweight 14 lb design gives structural repair crews precise control when chiseling overhead slabs and vertical support pillars.
Building Restoration & Structural Rehabilitation
Engineered for historic preservation and commercial renovation, this air hammer quickly removes damaged architectural concrete, loose stucco, and deteriorated masonry. The open-handle grip allows restoration masons to maneuver easily in tight corners and along intricate building facades.
Light Demolition & Masonry Removal
This pneumatic chipping hammer easily breaks down brickwork, concrete block walls, and hardened mortar joints during selective interior teardowns. The screw-on retainer keeps chisel bits securely locked in place during sustained, high-speed wall and floor demolition.
Surface Preparation & Formwork Cleaning
Ideal for pre-coating surface prep, the tool strips away hardened concrete spatter, dried grout, and stubborn excess material from jobsite formwork. Contractors use it to feather edges, scarify masonry surfaces, and create clean bonding profiles for new repair mortars.
Frequently Asked Questions (FAQ)
What air compressor requirements does the KTC-P3S have?
The tool requires an air compressor delivering at least 31.5 CFM at standard 90 PSI operating pressure using a 3/8-inch NPT air hose.
What is the benefit of the open-handle and screw-on retainer design?
The open handle provides an ergonomic grip for easy positioning at multiple angles, while the screw-on retainer keeps chisel bits firmly locked during intense vibration to prevent accidental tool ejection.
Which chisel shank sizes fit this chipping hammer?
The KTC-P3S chuck accepts standard 0.580-inch Hex and 0.680-inch Round shank chisels, giving you the flexibility to use a wide variety of demolition and scaling bits.
How do you maintain the KTC-P3S for reliable operation?
Add 3 to 4 drops of air tool oil into the 3/8-inch air inlet before each shift to protect internal seals and pistons. Always shut off and bleed the air supply line before swapping chisels or servicing the retainer.
