FEATURES

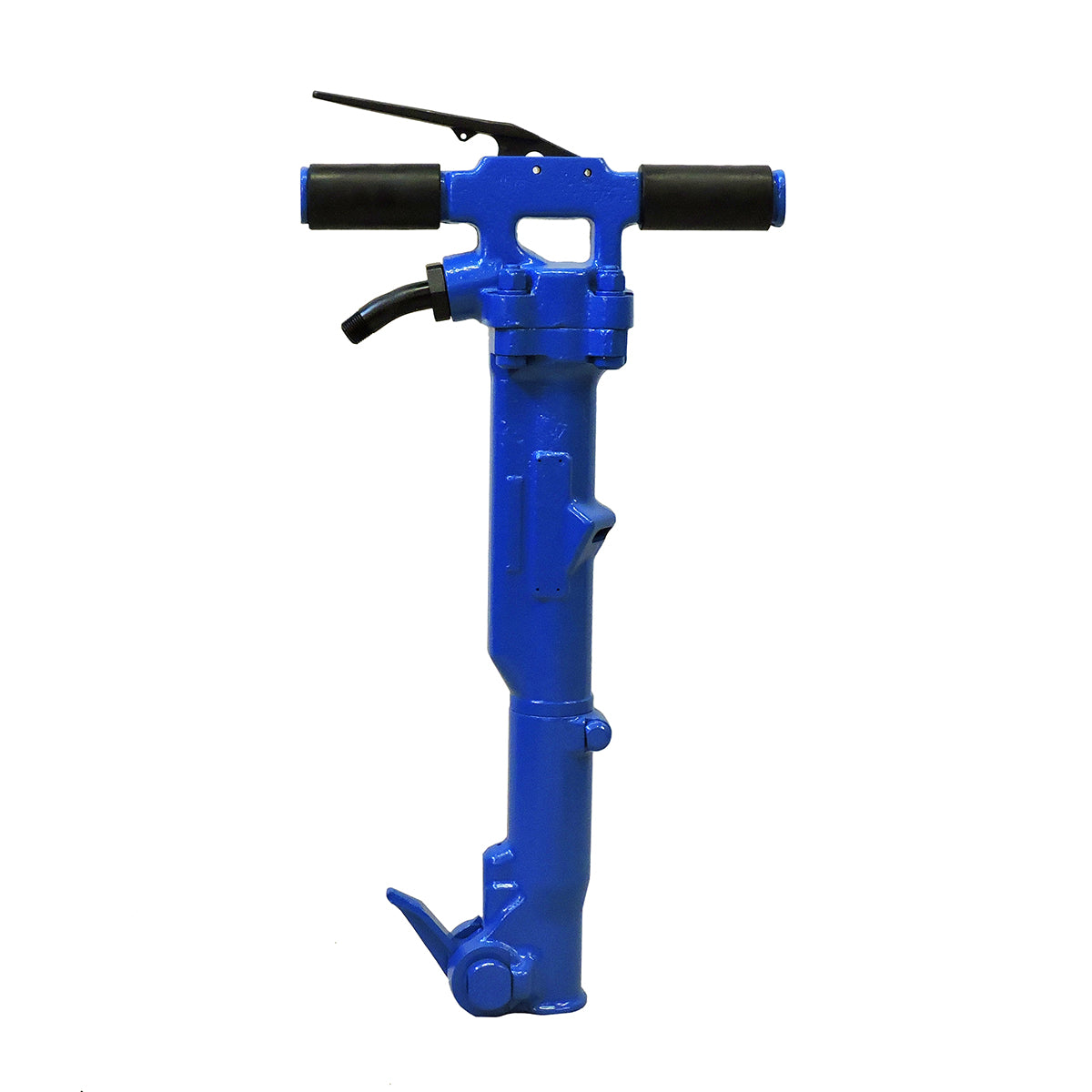

- 40 lb Class Pavement Breaker.
- Used for light to medium demolition jobs and bridge deck resurfacing.
- Cuts asphalt and breaks 2-4 inch hard concrete.
SCHEMATIC & PARTS LIST
KT-PB40 Schematic: Click Here
KT-PB40 Escquemático: En español haz clic aquí
SPECIFICATIONS
| Model Name | KT-PB40 |
| Net Weight | 42 lbs (19 kg) |
| Length | 25.125 in (683 mm) |
| Bore | 1.73 in (44 mm) |
| Stroke | 5.75 in (44 mm) |
| Blows Per Minute | 900 |
| Chuck Sizes | 1 x 4 1/4 in (25 x 108 mm) |
| Air Inlet (NPT) | 1/2 or 3/4 in (13 or 19 mm) |
| Air Consumption* | 56 cfm (1.6 m3/m) |
| *estimated | |
| Oil Tool | Use ISO 100 Grade Tool Oil in Breakers |
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
TOOL VIDEO DEMO
