FEATURES

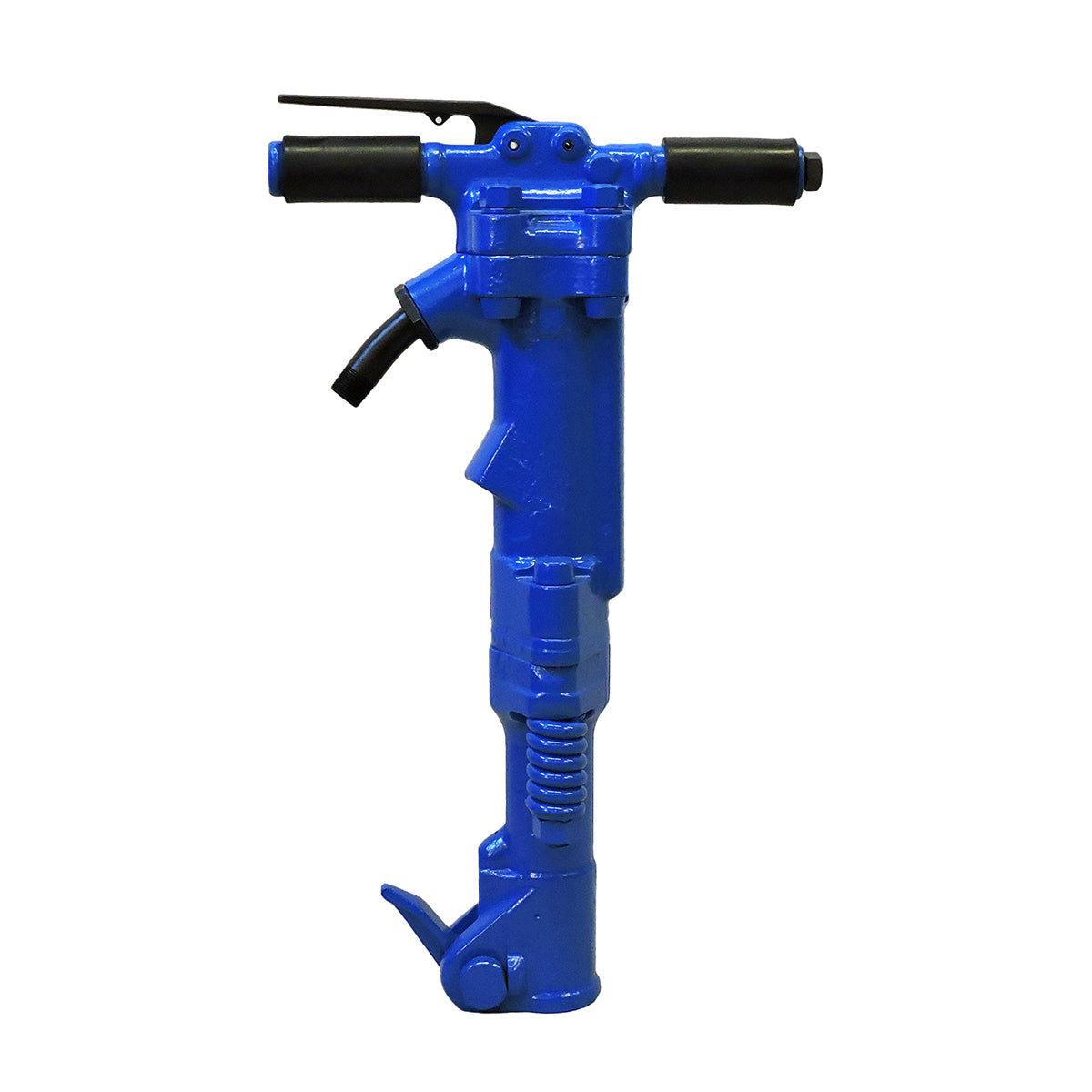

- 60 lb Class Pavement Breaker.
- Used for medium demolition jobs on rock, 3-4 inch thick concrete, pavement, and asphalt.
SCHEMATIC & PARTS LIST
KT-PB60 Schematic: Click Here
KT-PB60 Escquemático: En español haz clic aquí
SPECIFICATIONS
| Model Name | KT-PB60 |
| Net Weight | 67 lbs (30 kg) |
| Length | 25.625 in (651 mm) |
| Bore | 2.25 in (57 mm) |
| Stroke | 4.0937 in (104 mm) |
| Blows Per Minute | 1400 |
| Chuck Sizes | 1 1/4 x 6 in (32 x 154 mm) 1 1/8 x 6 in (28 x 154 mm) |
| Air Inlet (NPT) | 3/4 in (19 mm) |
| Air Consumption* | 59 cfm (1.70 m3/m) |
| *estimated | |
| Tool Oil | Use ISO Grade 100 Tool Oil in breakers |
