FEATURES

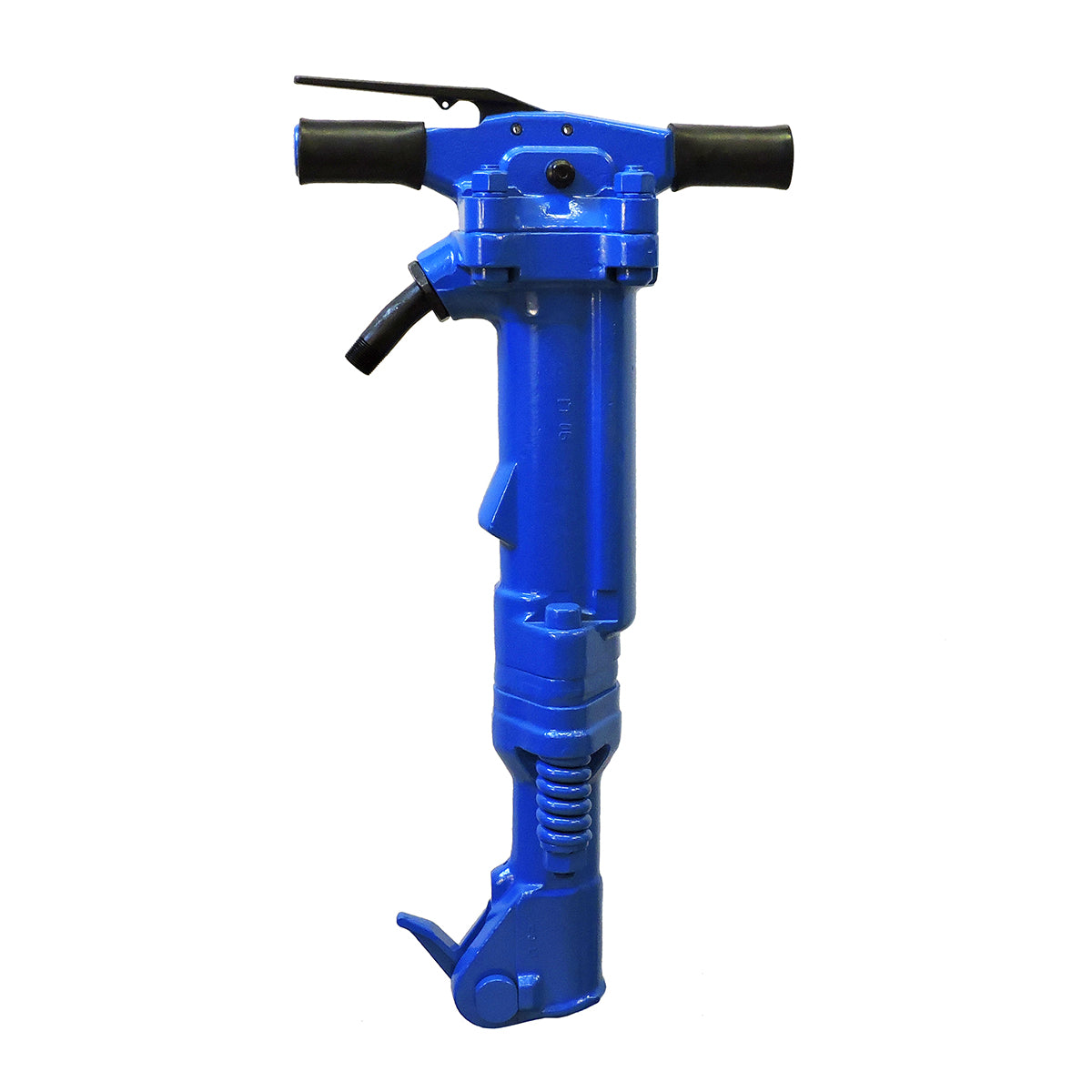

- 90 lb Class Pavement Breaker.
- Used for heavy demolition jobs.
- Breaks rock, reinforced concrete, 5-6 inch thick concrete and pavement.
SCHEMATIC & PARTS LIST
KT-PB90 Schematic: Click Here
KT-PB90 Escquemático: En español haz clic aquí
SPECIFICATIONS
| Model Name | KT-PB90 |
| Net Weight | 92.5 lbs (42 kg) |
| Length | 28.75 in (730 mm) |
| Bore | 2.625 in (66.67 mm) |
| Stroke | 6.0625 in (154 mm) |
| Blows Per Minute | 1250 |
| Chuck Sizes | 1 1/4 x 6 in (32 x 154 mm) 1 1/8 x 6 in (28 x 154 mm) |
| Air Inlet (NPT) | 3/4 in (19 mm) |
| Air Consumption* | 75 cfm (2.1 m3/m) |
| *estimated | |
| Tool Oil | Use ISO Grade 100 Tool Oil in breakers |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
