FEATURES
- 26, 30, & 40 lb Class Rivet Buster
- Designed for medium concrete demolition and cutting rivet heads
- D Handle with internal variable speed trigger

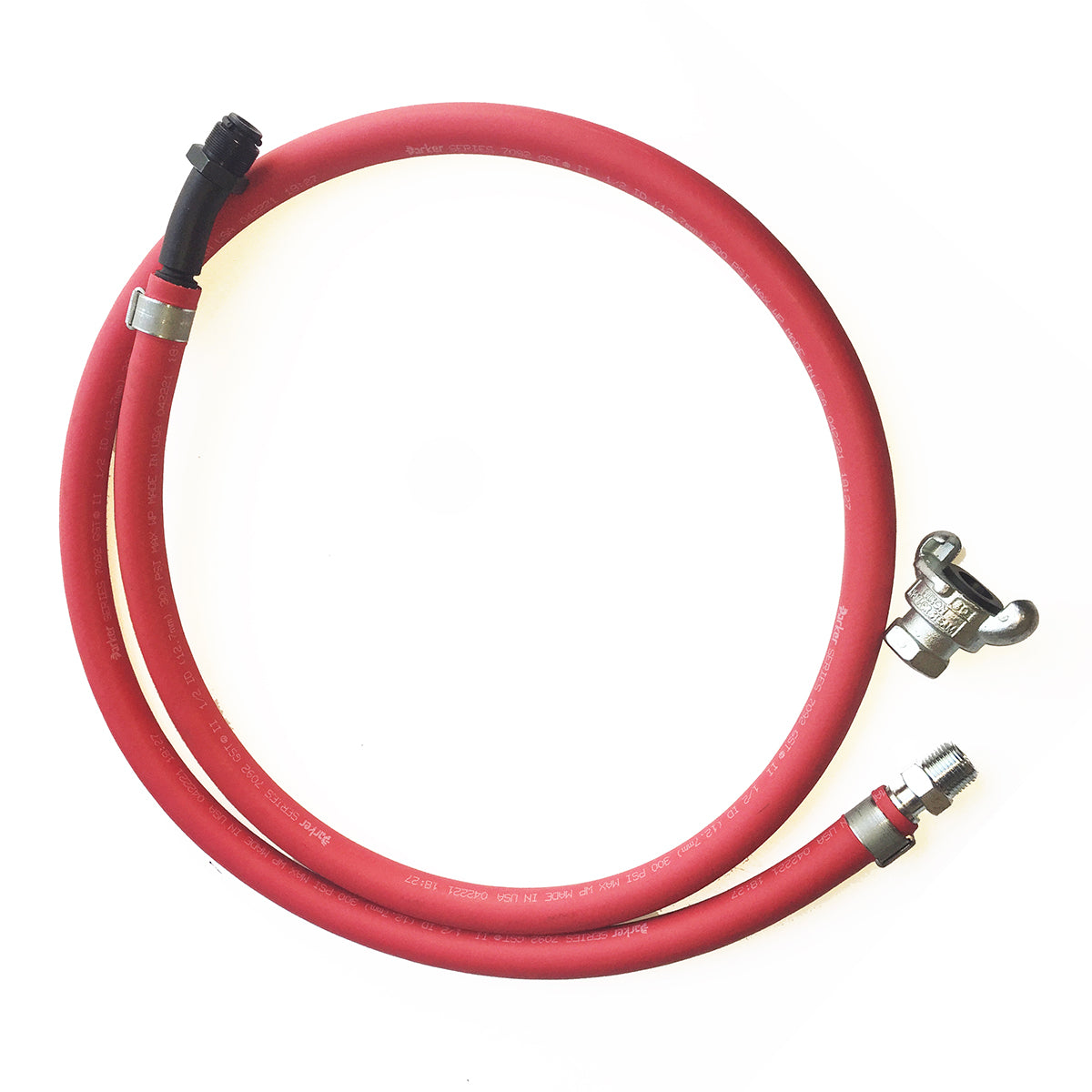

- Whip Hose Included with tool
SCHEMATIC & PARTS LIST
KT-RB6, 8, 11 Schematic: Click Here
KT-RB6, 8, 11 Escquemático: En español haz clic aquí
TOOL DEMO VIDEO
SPECIFICATIONS

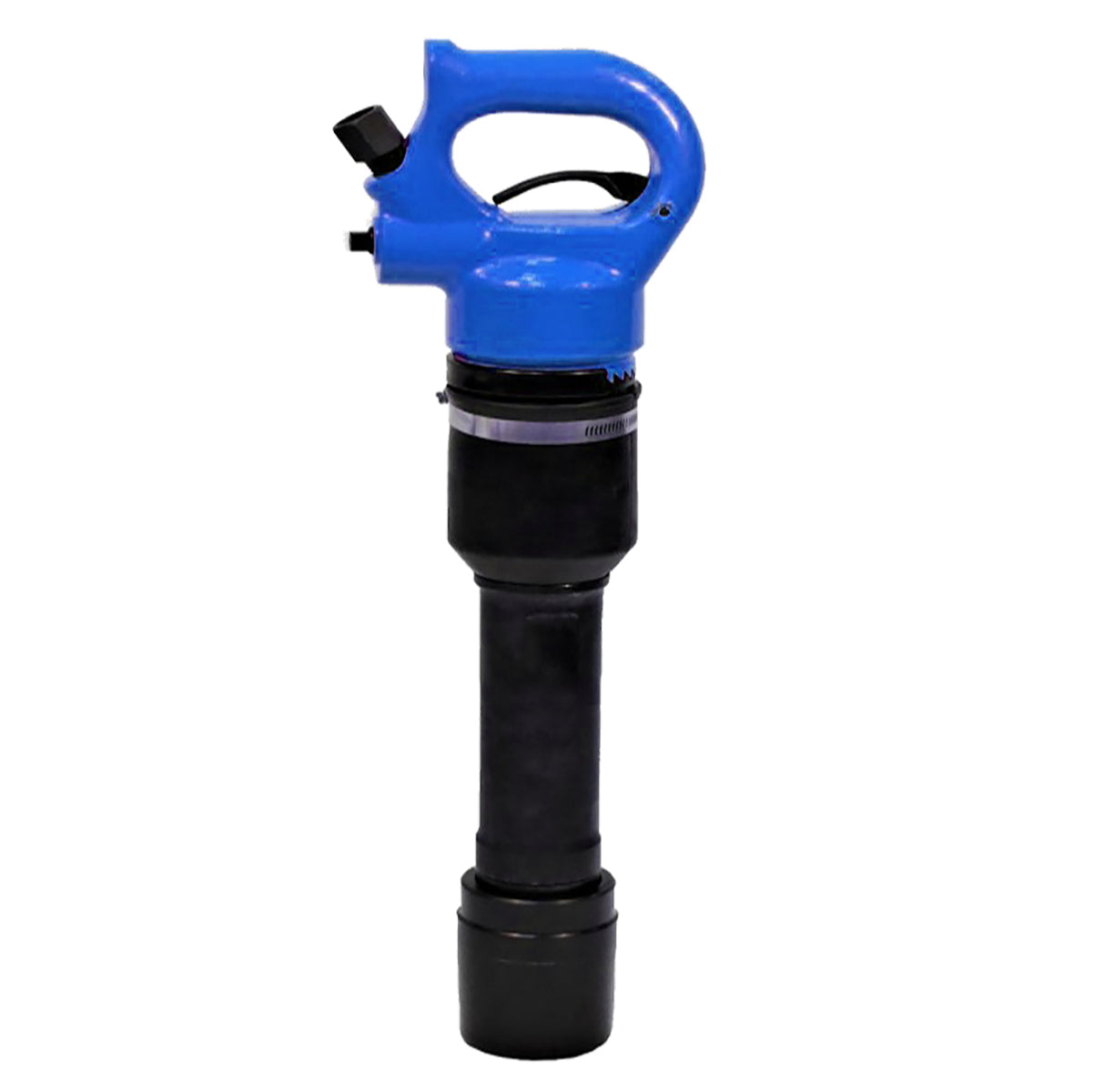

| Model Name | KT-RB6 |
| Net Weight | 26 lbs (12 kg) |
| Length | 20.5 in (522 mm) |
| Bore | 1.1875 in (30 mm) |
| Stroke | 6 in (153 mm) |
| Blows Per Minute | 1200 |
| Chuck Sizes | 11 x Jumbo |
| Air Inlet (NPT) | 1/2 in (12 mm) |
| Air Consumption* | 44 cfm (1.3 m3/m) |
|
*estimated |
|
| Keep Tool Oiled | ISO 32 Tool Oil (10x Tool Oil) |

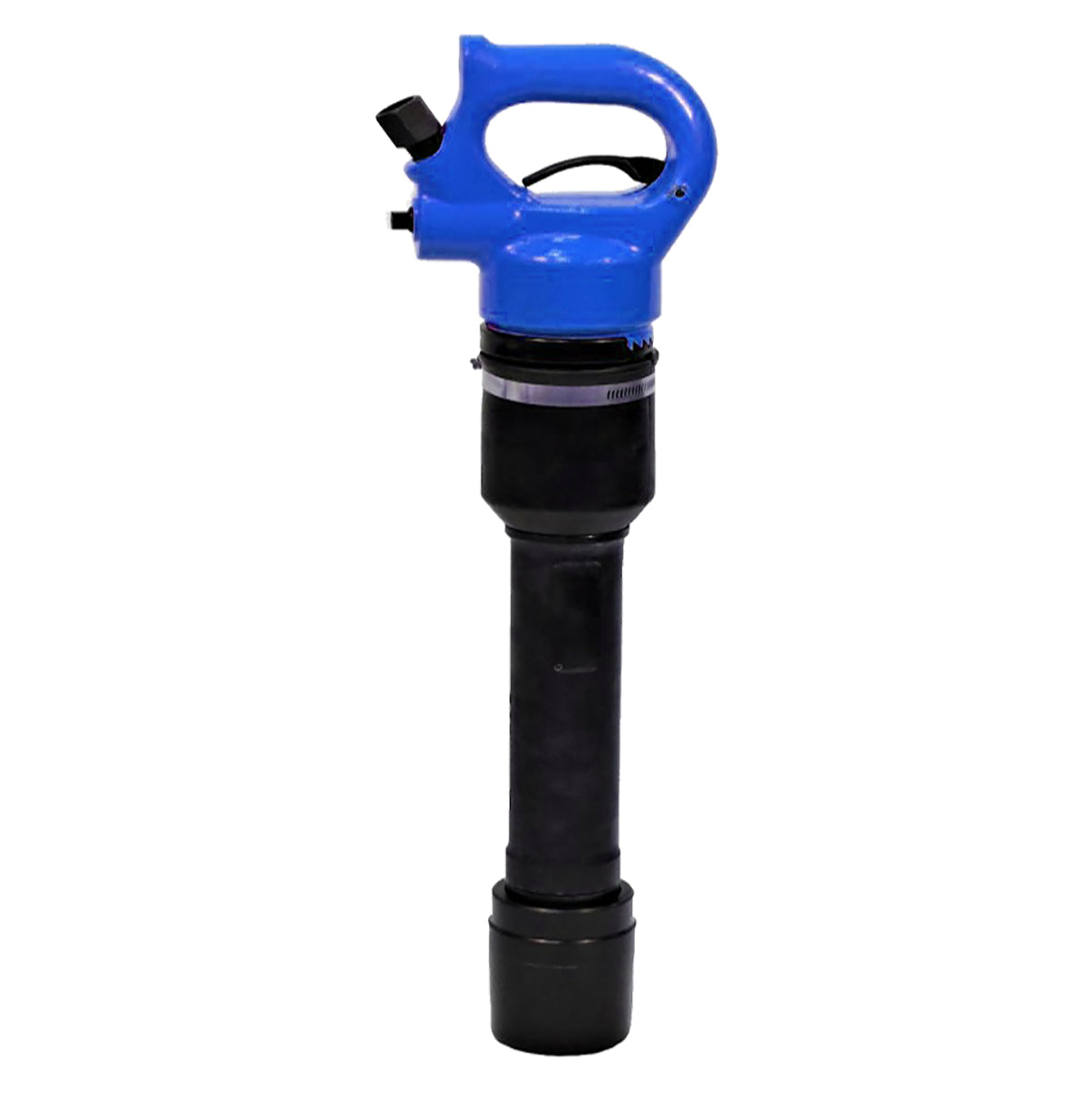

| Model Name | KT-RB8 |
| Net Weight | 30 lbs (14 kg) |
| Length | 22.5 in (572 mm) |
| Bore | 1.1875 in (30 mm) |
| Stroke | 8 in (203 mm) |
| Blows Per Minute | 1140 |
| Chuck Sizes | 11 x Jumbo |
| Air Inlet (NPT) | 1/2 in (12 mm) |
| Air Consumption* | 44 cfm (1.3 m3/m) |
| *estimated | |
| Keep Tool Oiled | Use ISO 32 Tool Oil (10w Tool Oil) |

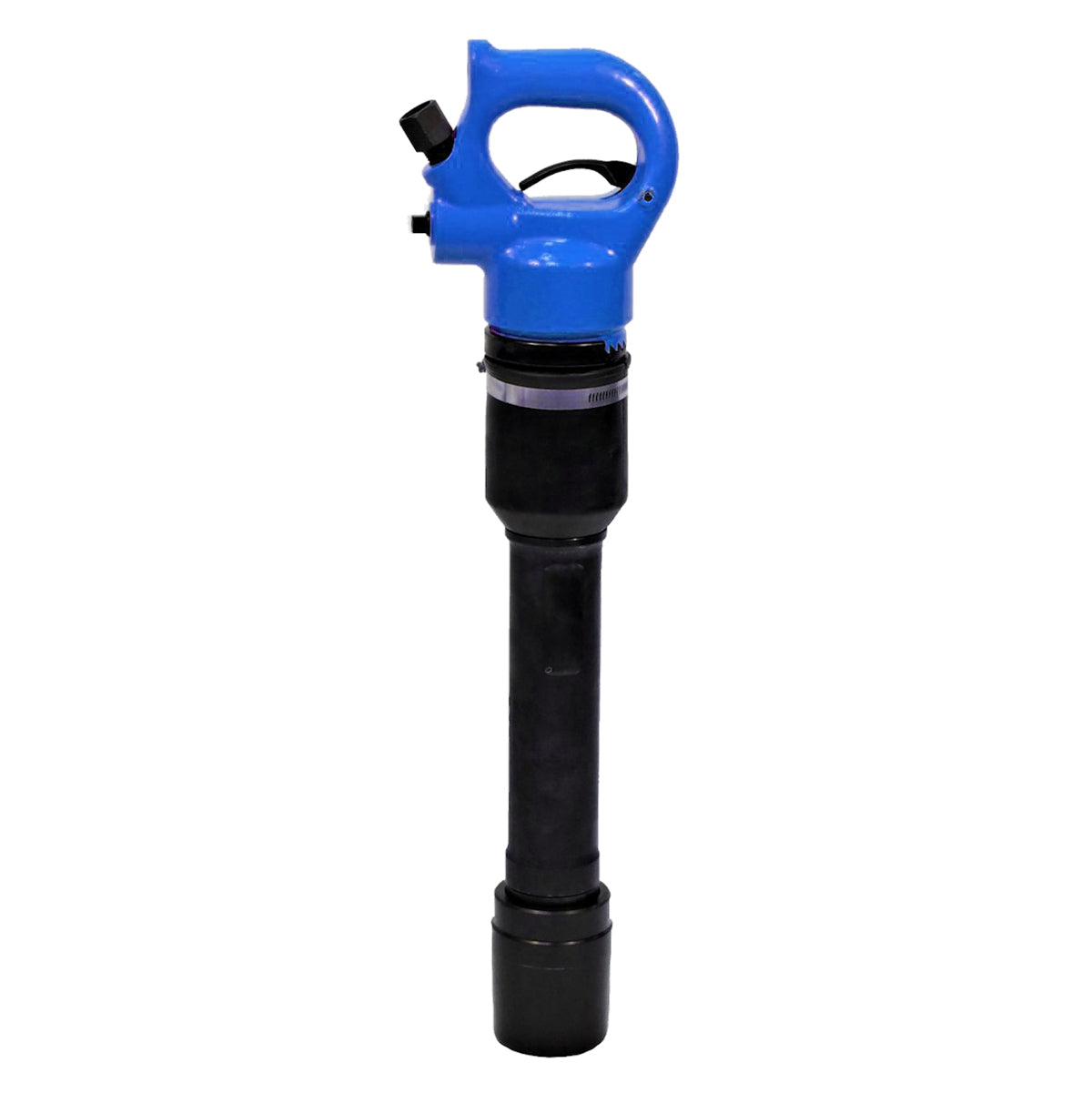

| Model Name | KT-RB11 |
| Net Weight | 33 lbs (15 kg) |
| Length | 25.5 in (648 mm) |
| Bore | 1.1875 in (30 mm) |
| Stroke | 11 in (279 mm) |
| Blows Per Minute | 850 |
| Chuck Sizes | 11 x Jumbo |
| Air Inlet (NPT) | 1/2 in (12 mm) |
| Air Consumption* | 50 cfm (1.41 m3/m) |
| *estimated |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
