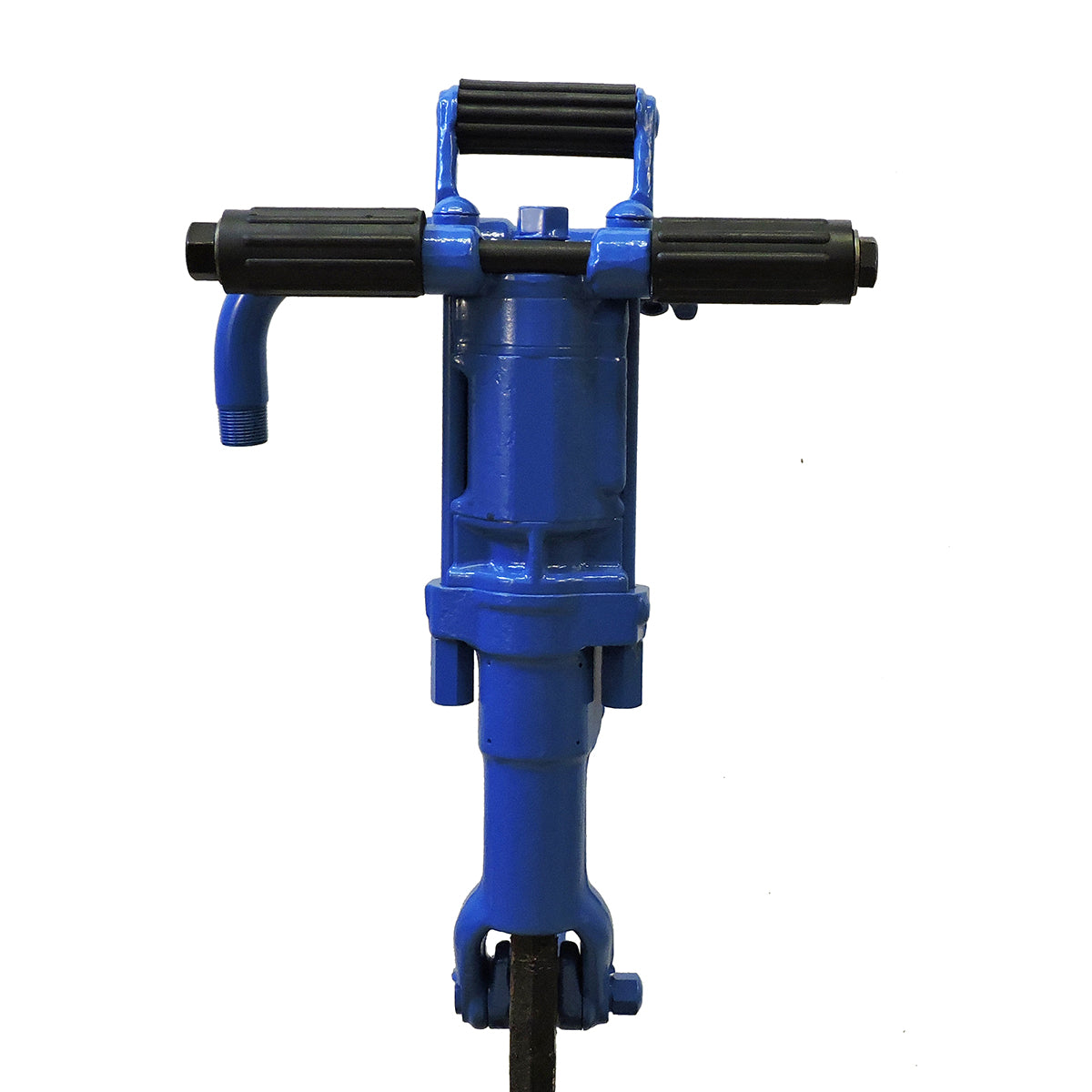

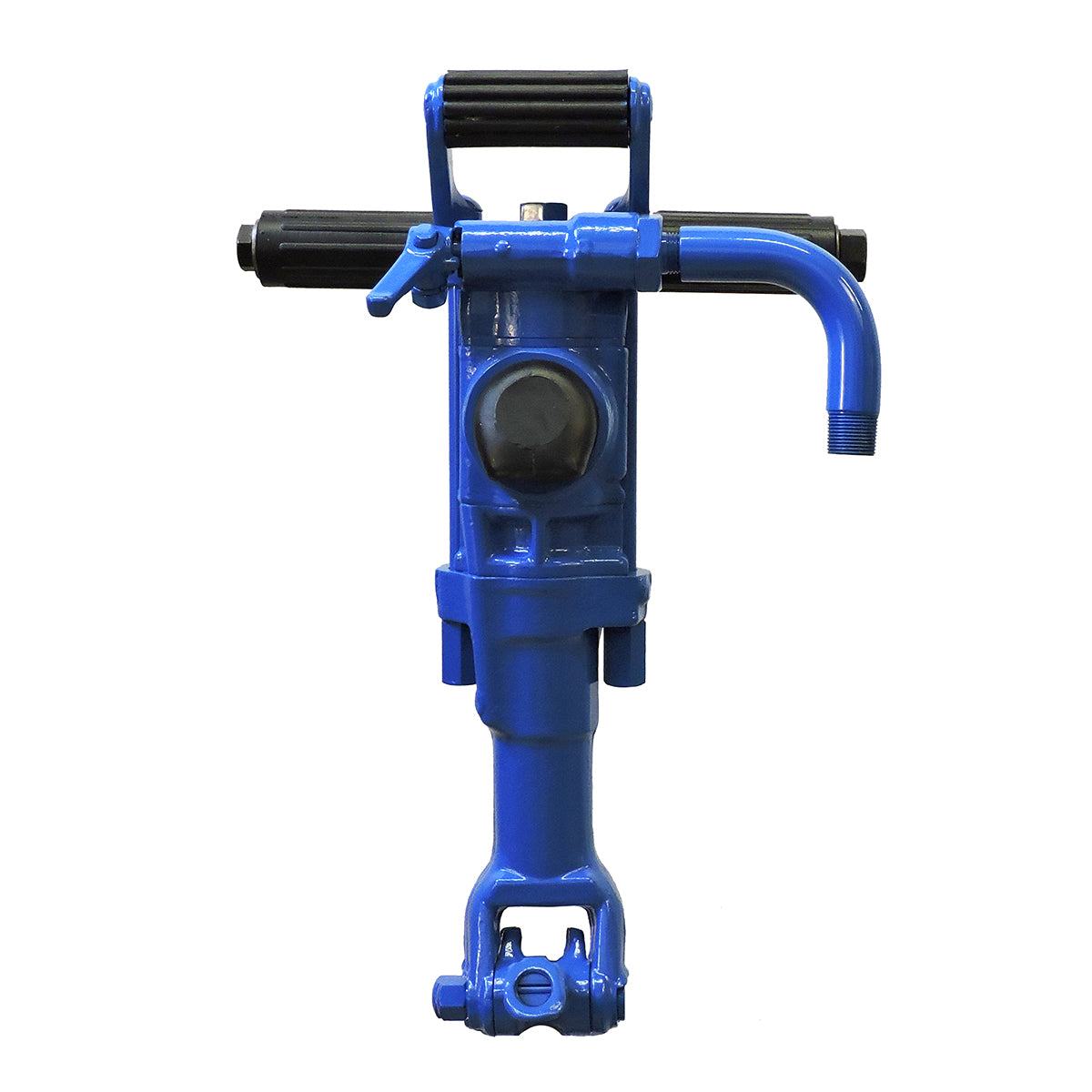

- 30 lb Class Rock Drill.
- Maneuver in tight spaces and work horizontally if needed.
SCHEMATIC & PARTS LIST
KT-RD30 Schematic: Click Here
|Net Weight||29 lbs (13 kg)|
|Length||19.5 in (495 mm)|
|Bore||2.4375 in (62 mm)|
|Stroke||1.4375 in (37 mm)|
|Chuck Sizes||7/8 x 4 1/4 in (22 x 108 mm)
7/8 x 3 1/4 in (22 x 83 mm)
|Air Inlet (NPT)||3/4 in (19 mm)|
|Air Consumption*||73 cfm (2.10 m3/m)|
|Oil Tool||Use ISO Grade 100 Tool Oil in Breakers|
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
- Brand New
