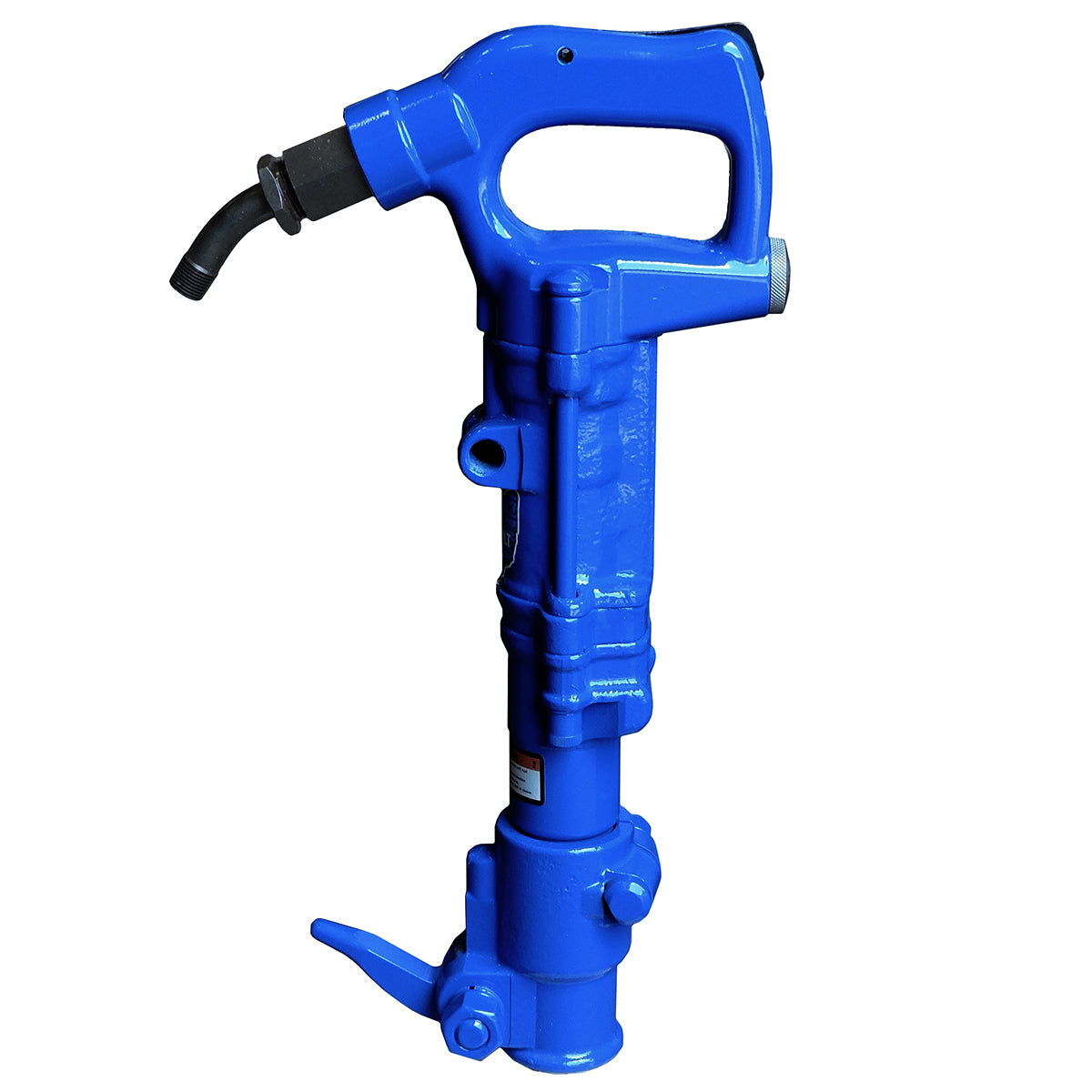

KT-RD20 ROCK DRILL: 20lb Class

Regular price $1,205.00

FEATURES

  • 20 lb Class Rock Drill.

SCHEMATIC & PARTS LIST

RD20 Schematic: Click Here

SPECIFICATIONS

Item Model Name KT-RD20 ROCK DRILL
Net Weight 16.5 lbs (7.5 kg)
Length 19 in (483 mm)
Bore  1.9375 in (49.18 mm)
Stroke  1.89 in (48 mm)
BPM 2900
Chuck Sizes 7/8 x 4 1/4 in (22 x 108 mm)
7/8 x 3 1/4 in (22 x 83 mm)
 Air Inlet (NPT) 1/2 in (12 mm)
Air Consumption* 36 cfm (1.2 m3/m)
*estimated
Oil Tool Use ISO Grade 100 Tool Oil in Breakers

*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.

WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.

Do NOT exceed 100 PSI (7BAR) working pressure.
