- Powerful back fill tamper for ramming foundry sand.
- Used in smelting and construction industry.
SCHEMATIC & PARTS LIST
KT-6T Escquemático: En español haz clic aqui

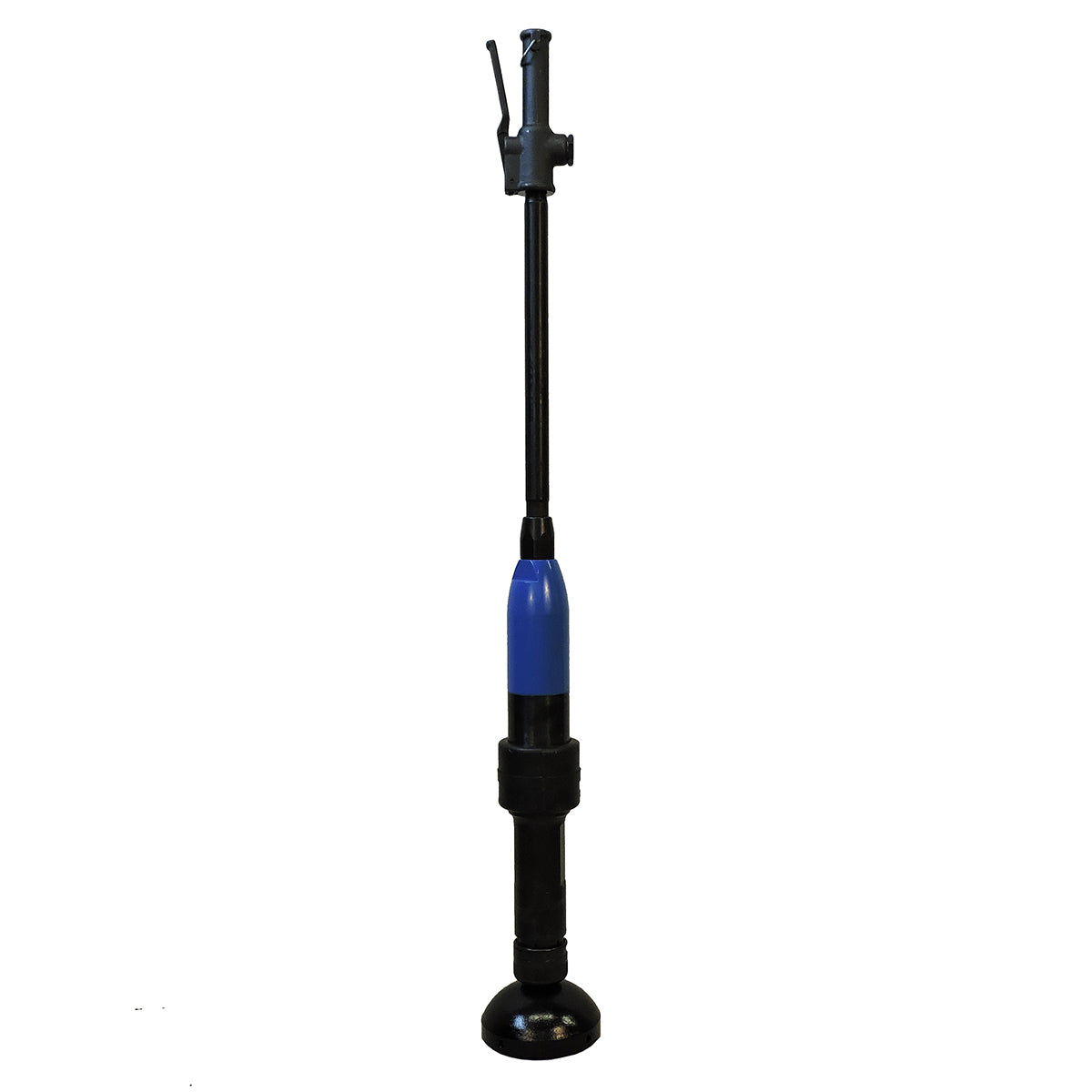

|Product Name||KT-6T TAMPER (with Round Butt)|
|Net Weight||40 lbs (18 kg)|
|Length||48.25 in (1226 mm)|
|Bore||1.5 in (38 mm)|
|Stroke||5.5 in (140 mm)|
|Blows Per Minute||800|
|Air Inlet (NPT)||1/2 in (13 mm)|
|Air Consumption*||38.5 cfm (1.1 m3/m)|
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
WATCH PRODUCT DEMO VIDEO
